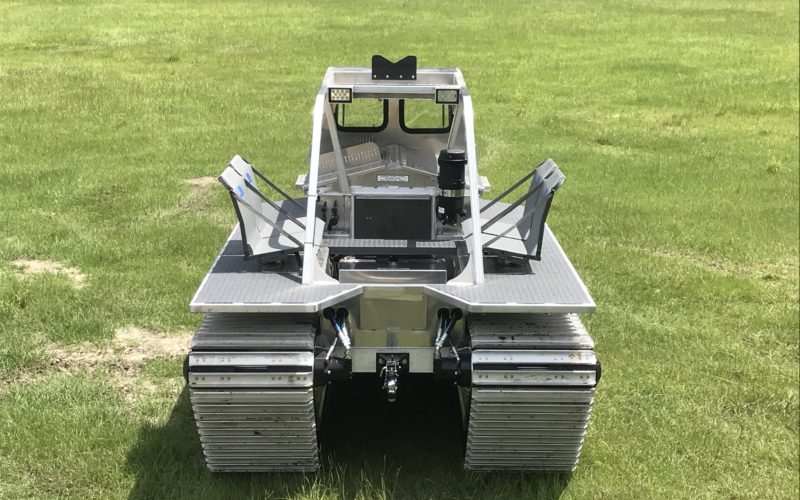

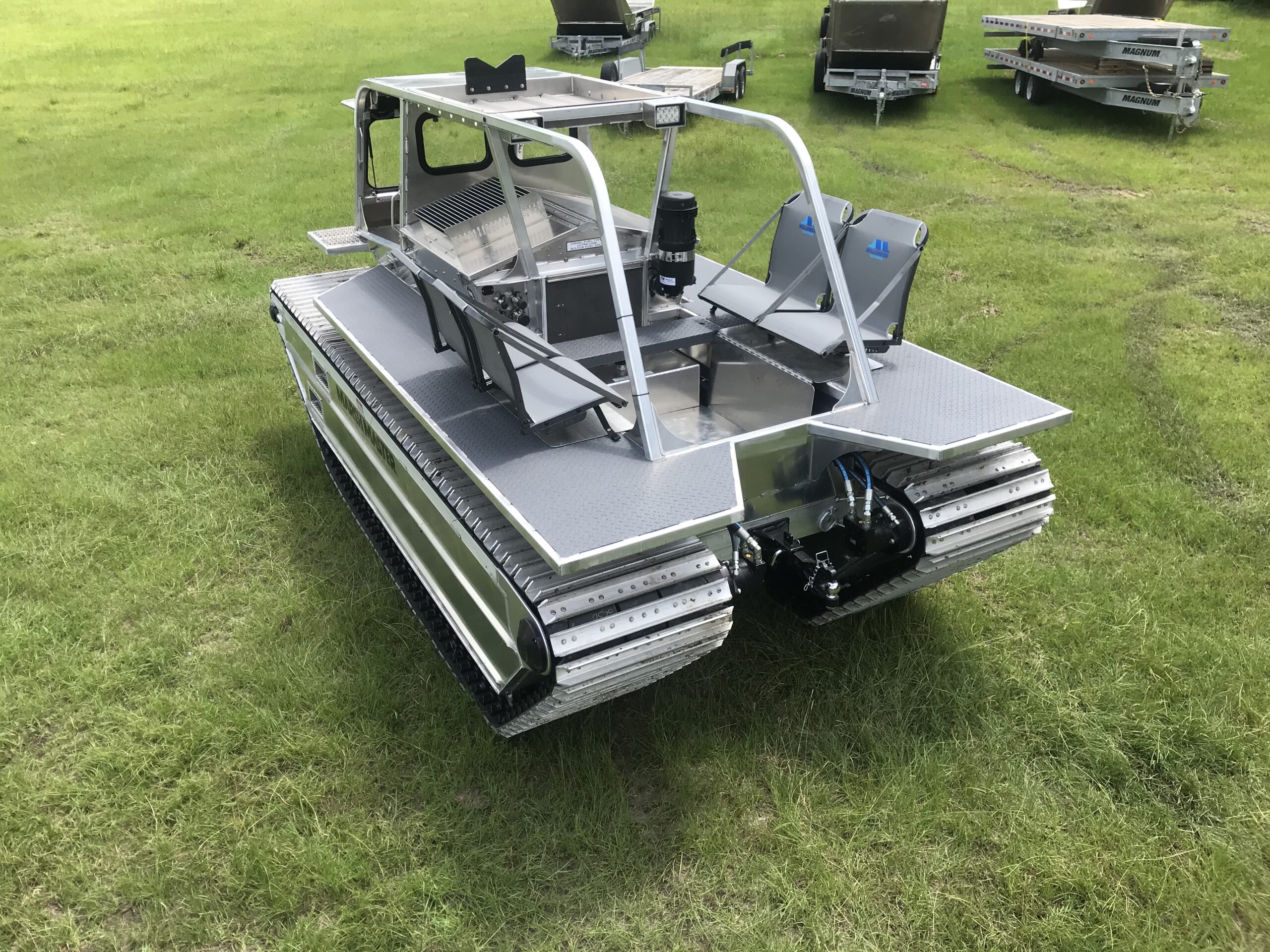

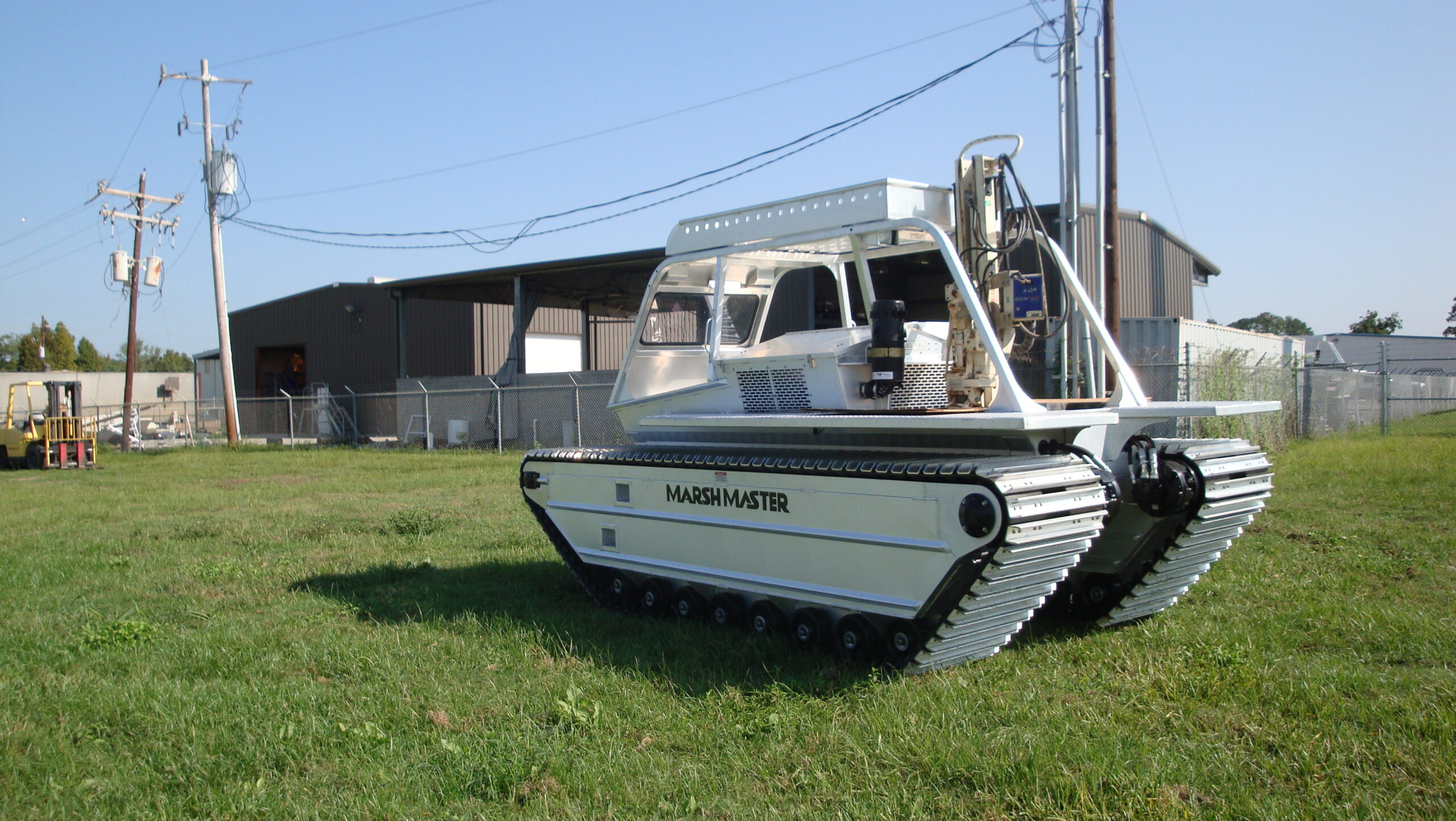

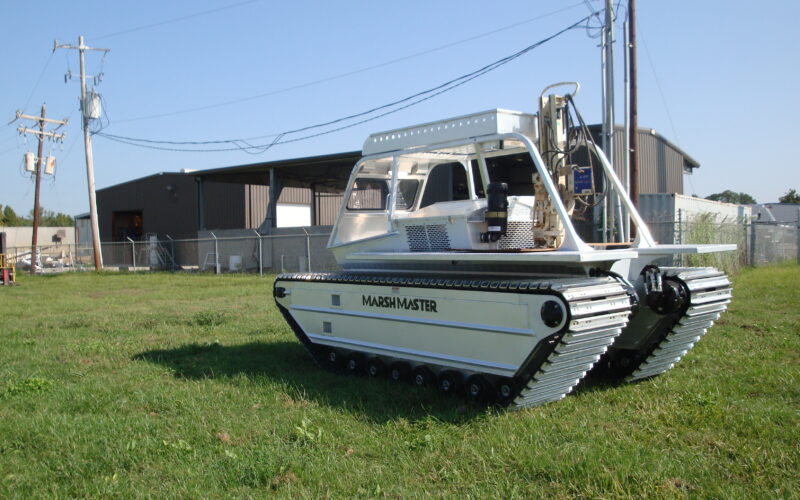

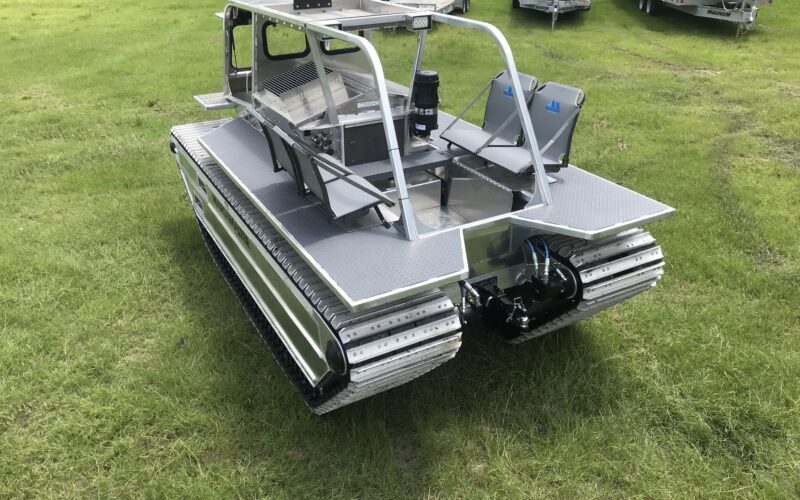

MM-2LX

MM-2LX Amphibious Marsh Buggy

For those who want the most out of their Marsh Master® amphibious vehicle

Get a Quote

A Bigger Model.
A Bigger Range of Versatility.


Break into new fields of operation with a machine that was manufactured for that reason. Several key features of the MM-2LX are improvements and refinements upon the Marsh Master® 1LX series. For starters, the MM-2LX has the ability to get more personnel to the job site. Additionally, greater flotation and a more powerful drive system gives the Marsh Master® MM-2LX more capacity and the ability to serve as a tool carrier for a variety of hydraulically driven attachments. Throw in the custom 3-point hitch system, and the MM-2LX becomes the undeniable choice when you need a multi-purpose machine to do many different jobs.

Benefits of the MM‑2LX:

  • Increased Flotation & Stability
  • Larger Cargo Area
  • Lower Ground Pressure
  • Higher Ground Clearance
  • Enhanced Maneuverability when afloat
  • More Power
  • Multi-Purpose Tool Carrier

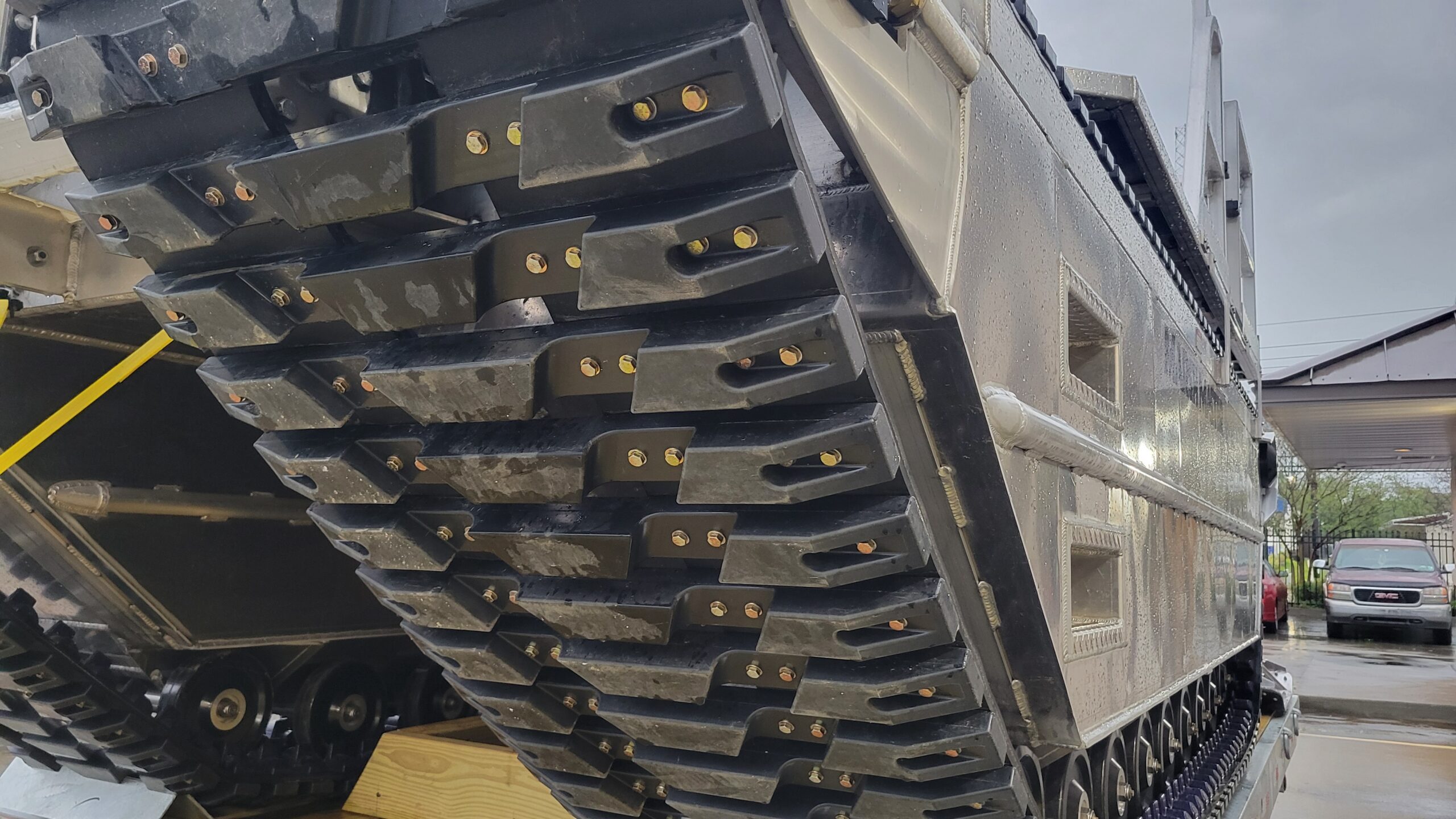

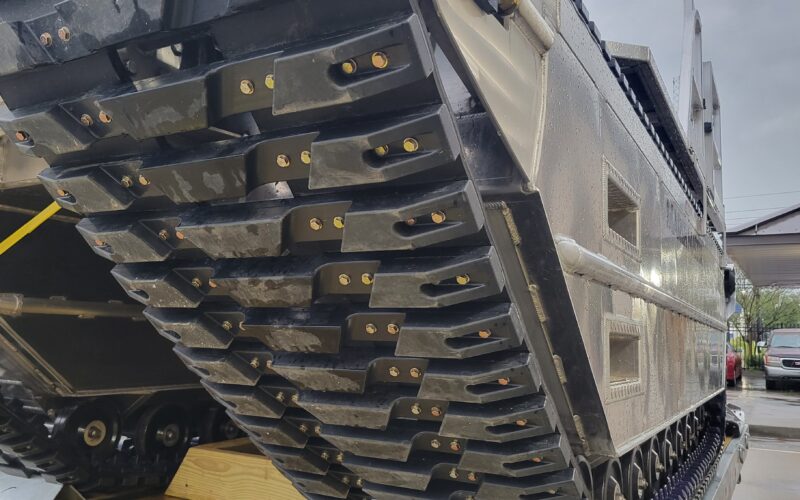

  • Designed within a unique rubber belt track system
  • Floating load capacity of the MM-2LX is 1800 lbs. (max)
  • Powered by a Tier 4 Final approved 74 HP Kohler KDI 2504TCR diesel engine coupled to a hydrostatic transmission.





Attachments that Adapt to Every Situation

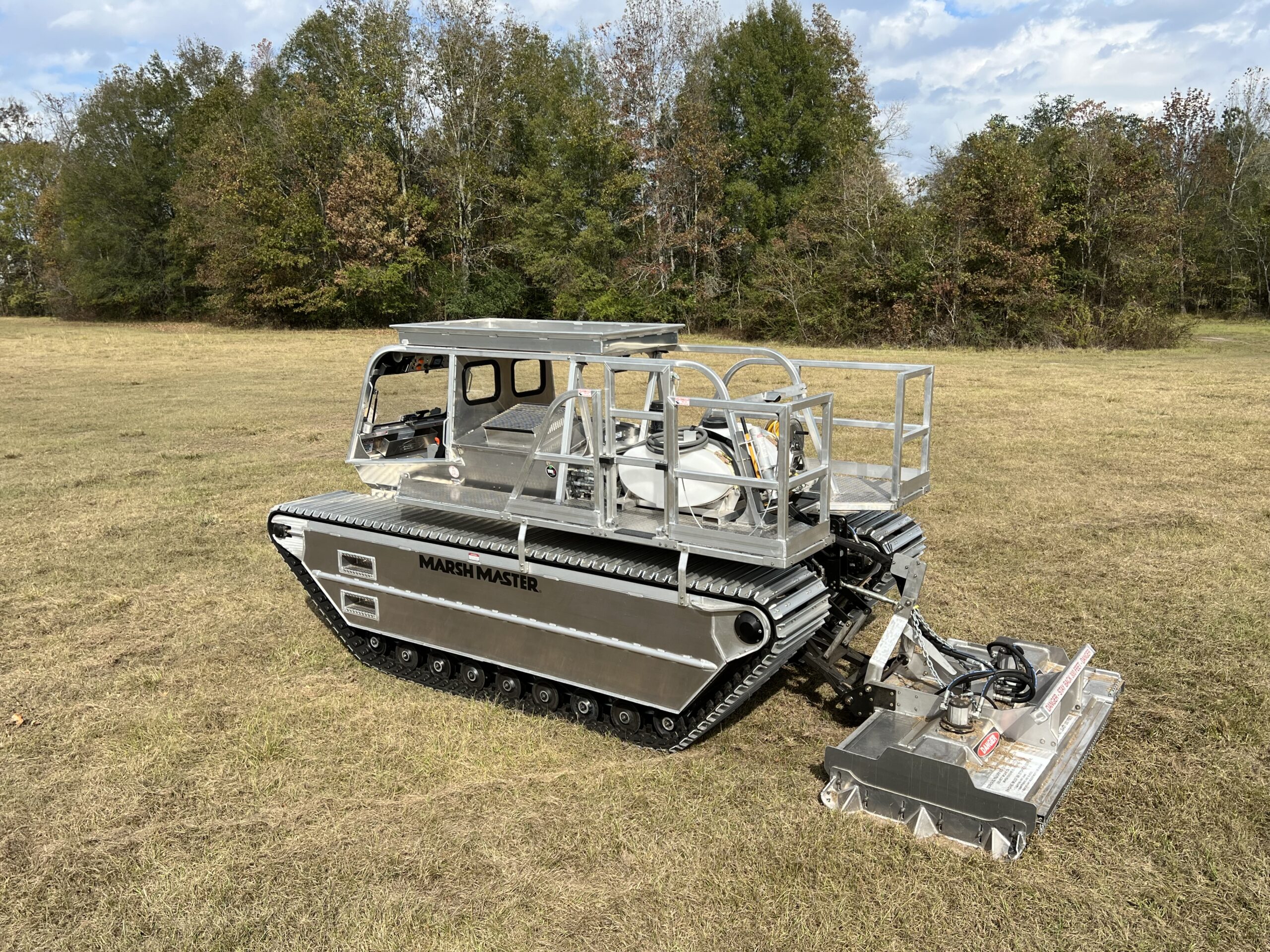

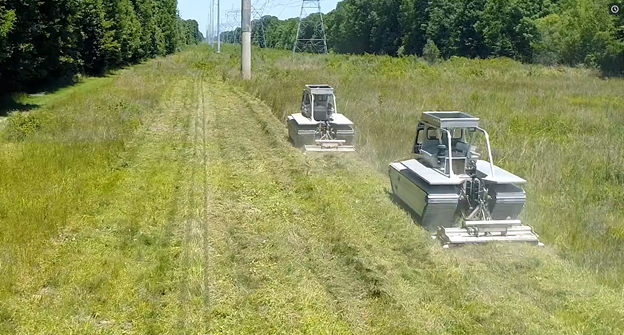

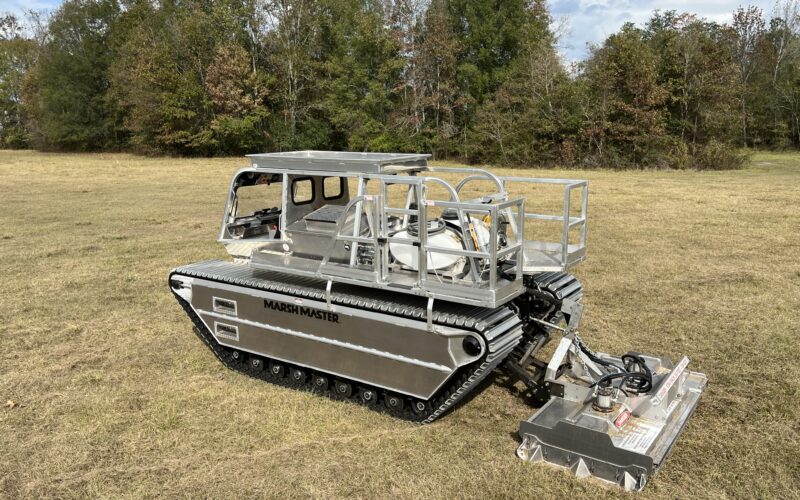

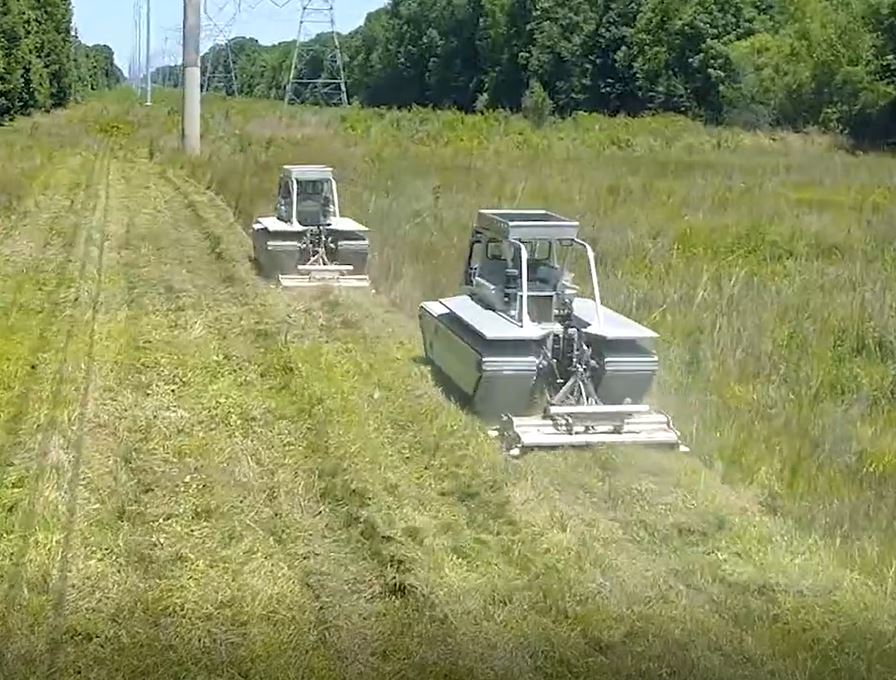

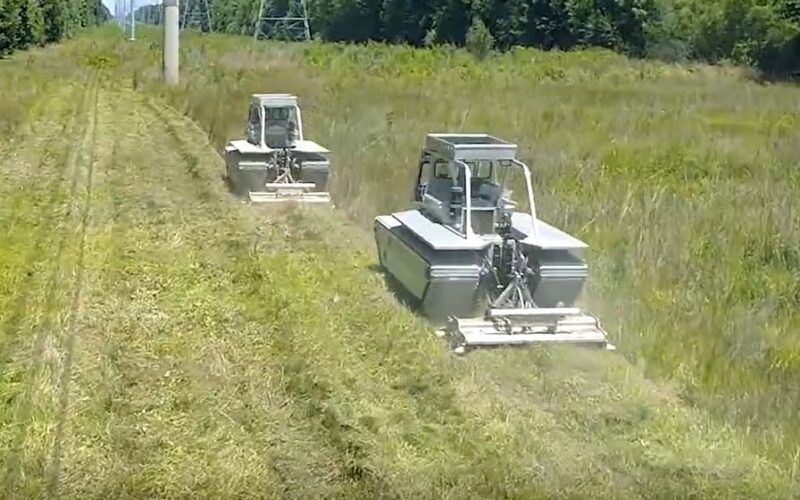

MM-2LX Cutter

The MM-2LX Cutter is a hydraulically driven, two spindle cutting unit that is designed specifically for wetland mowing applications.

  • Capable of cutting vegetation and brush up to 2” in diameter with ease
  • Two heavy-duty rotary blades cut a 76” swath through deep underbrush and tall marsh grasses.
  • Easy to remove due to a 3-point hitch system.
  • Ideal for applications in areas that limit other equipment, such as
    • Phragmites mitigation
    • Pipeline and right-of-way maintenance
    • Fire fighting
    • Management applications
  • Practical alternative to costly aerial herbicide applications or mowing operations in wetland areas inaccessible to non-amphibious equipment.

Watch Video

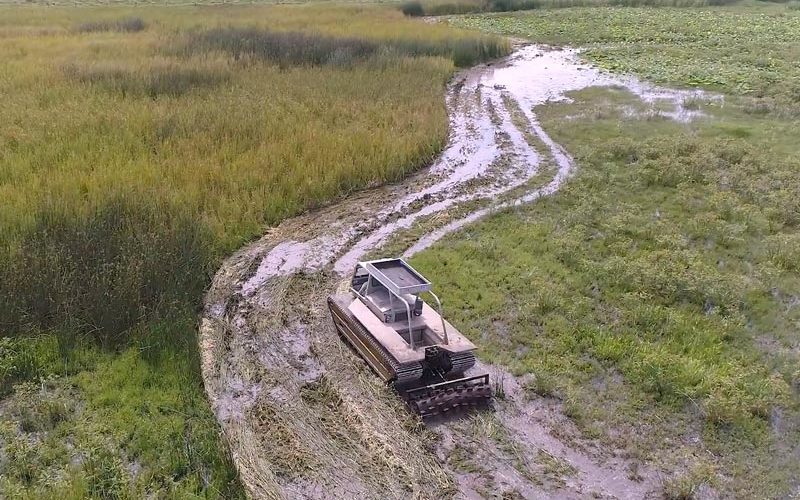

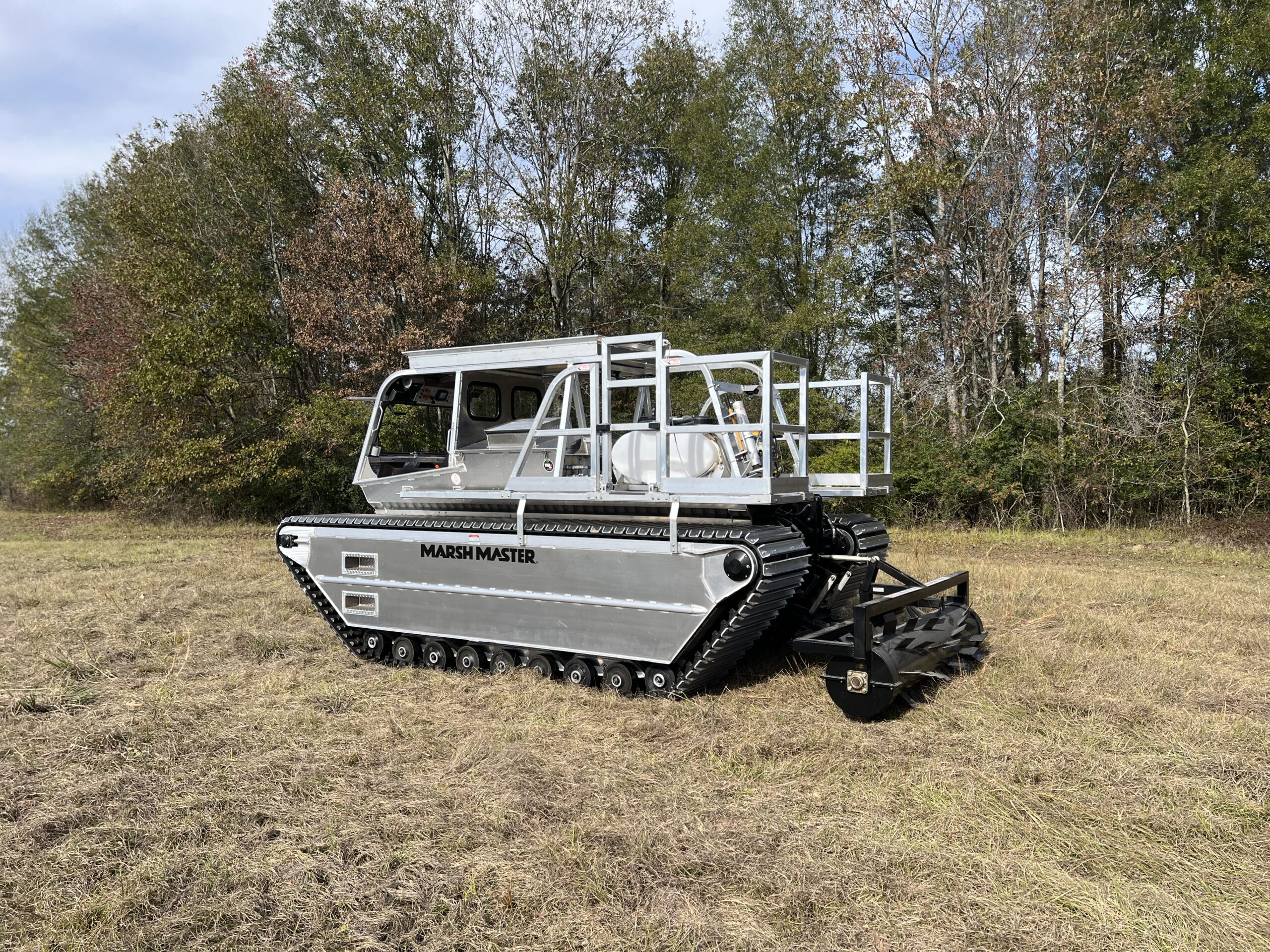

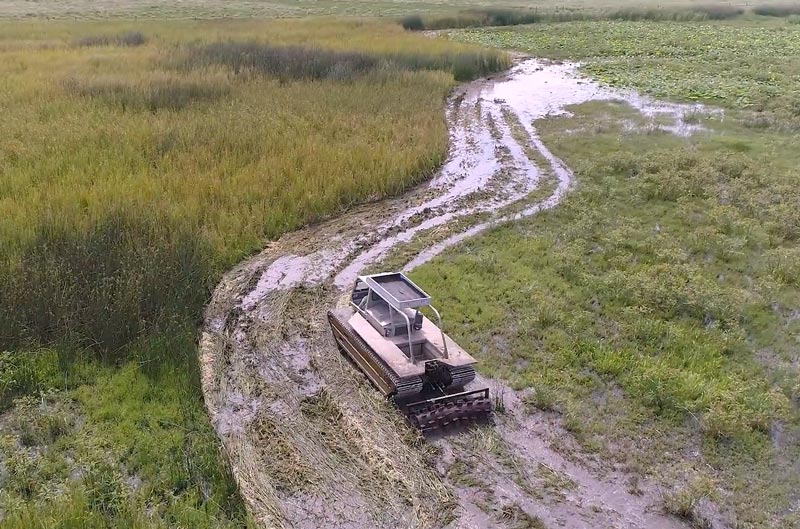

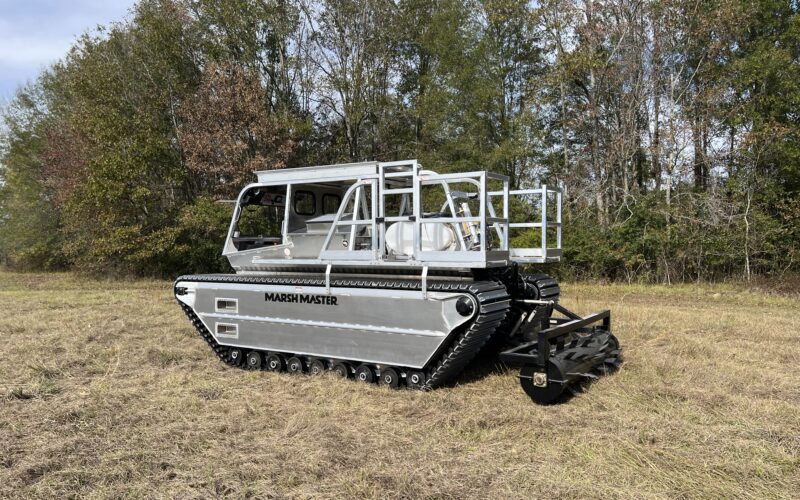

MM-2LX Roller Chopper

The MM-2LX Roller Chopper provides a simple, low cost method that rolls and flattens grasses while tracking, which is ideal for invasive phragmites and cattail control, wetline creation in control burning operations, or creating open water waterfowl habitat.

  • Creates an 8′ open swath with each pass
  • Attaches easily to the 3-point hitch
  • Drum can be filled with water for extra weight.
  • Fast and extremely effective in standing water up to 3′ deep.

Watch Video

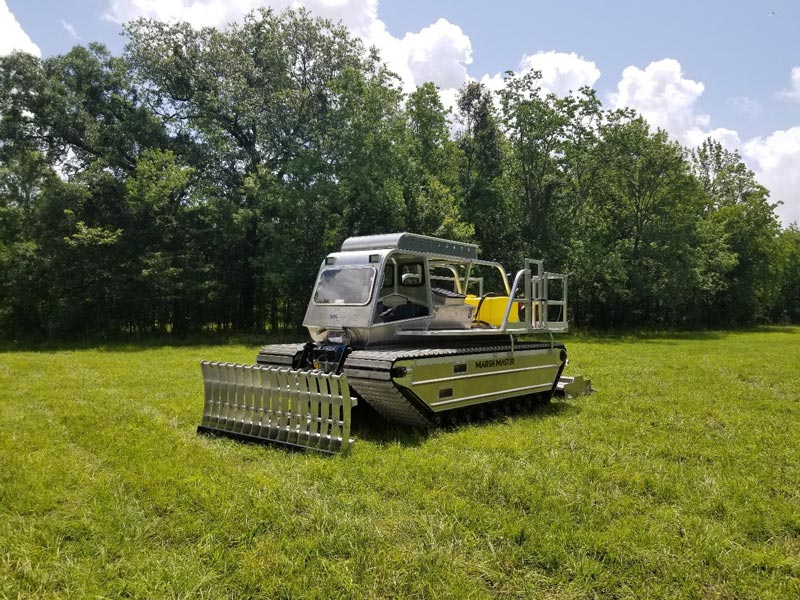

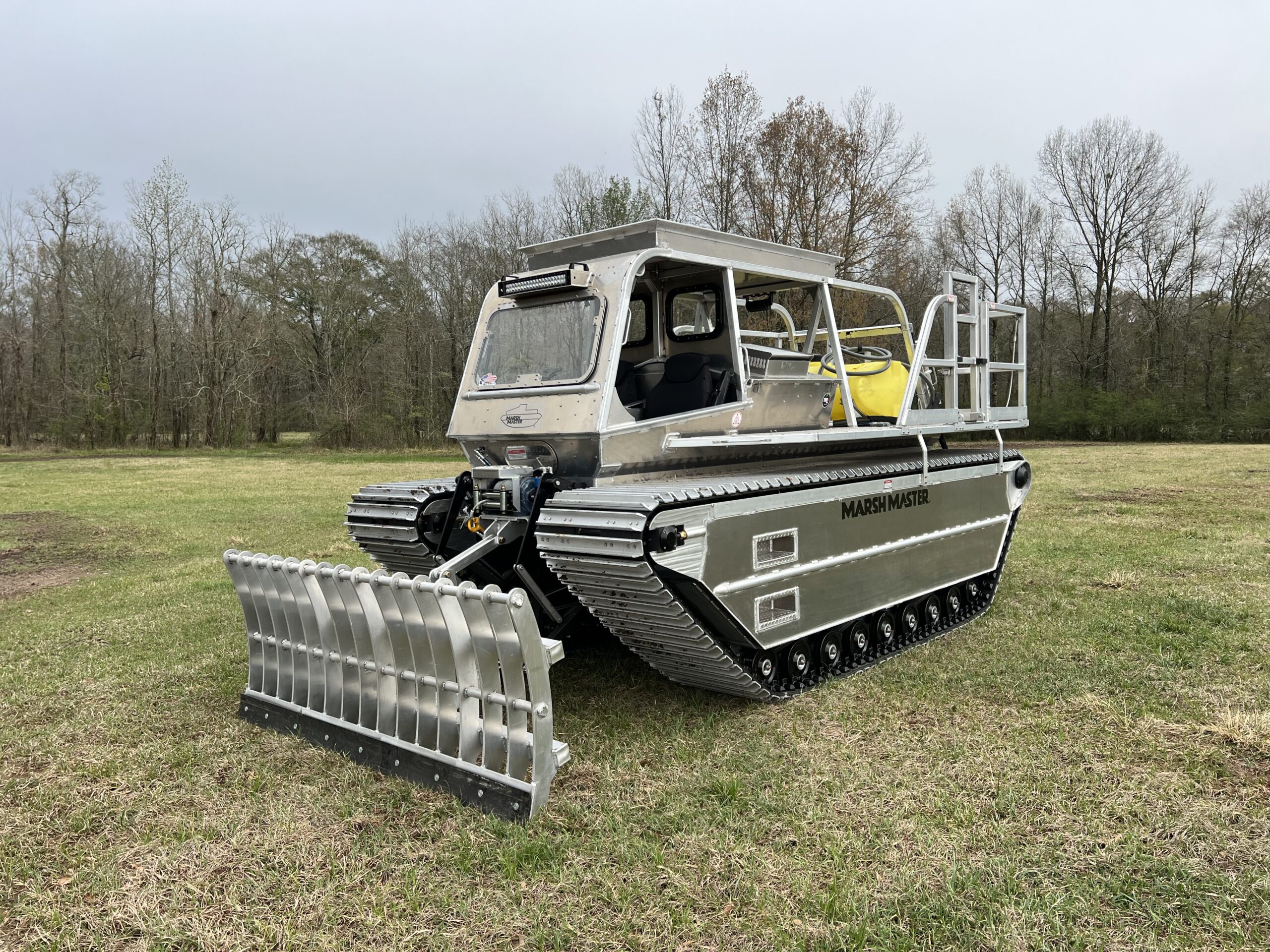

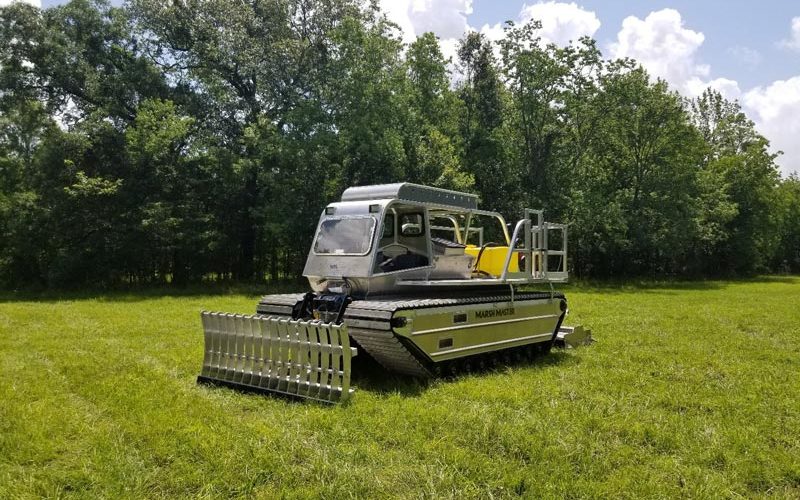

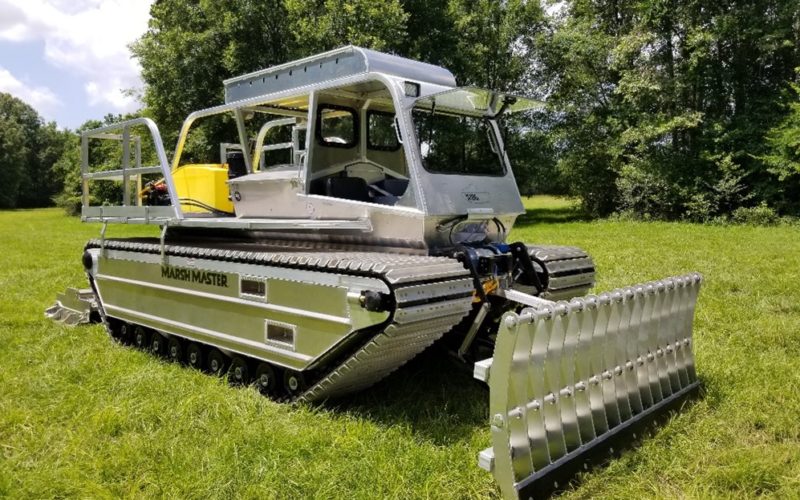

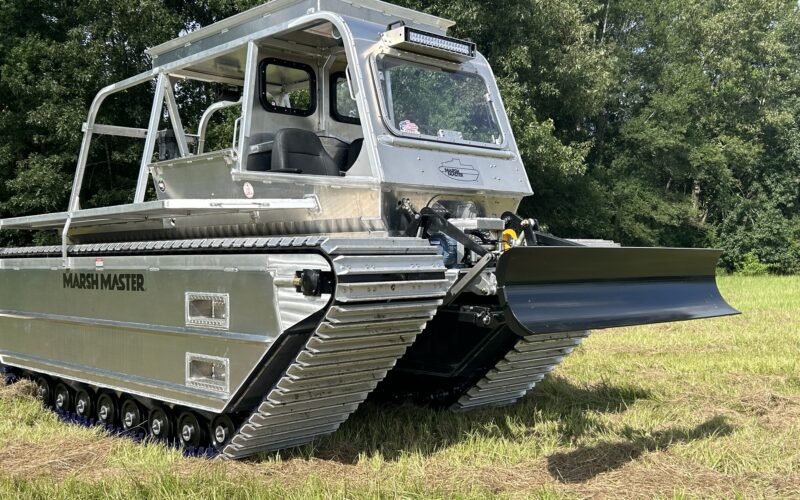

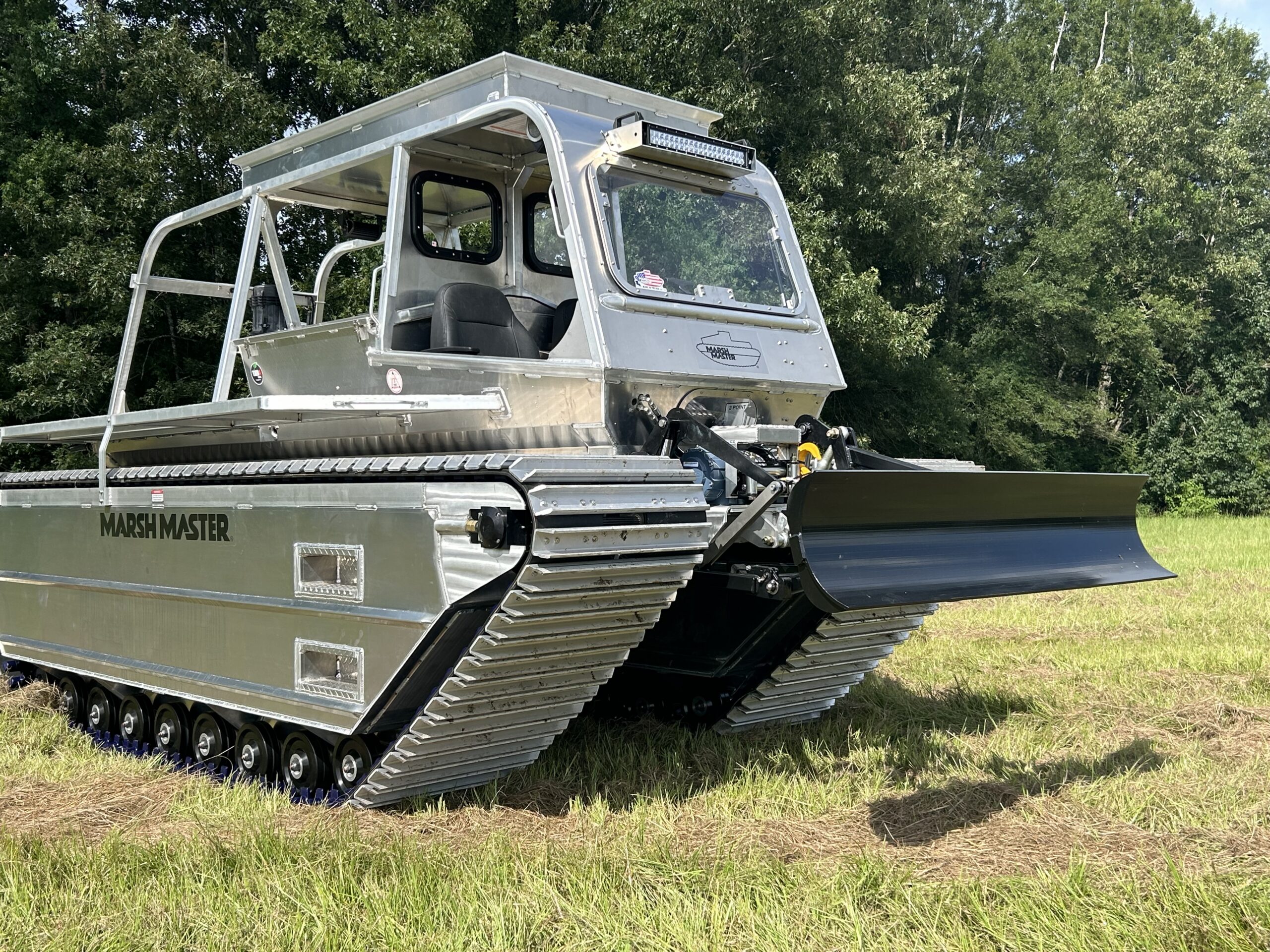

MM-2LX Vegetation Blade

The MM-2LX can be outfitted with a front-mounted 3-point hitch and a vegetation blade. This blade is designed to effectively clear cattails and other invasive wetland plants that encroach into ponds, lakes, and drainage areas inaccessible by any other equipment on the market.

Request More Info

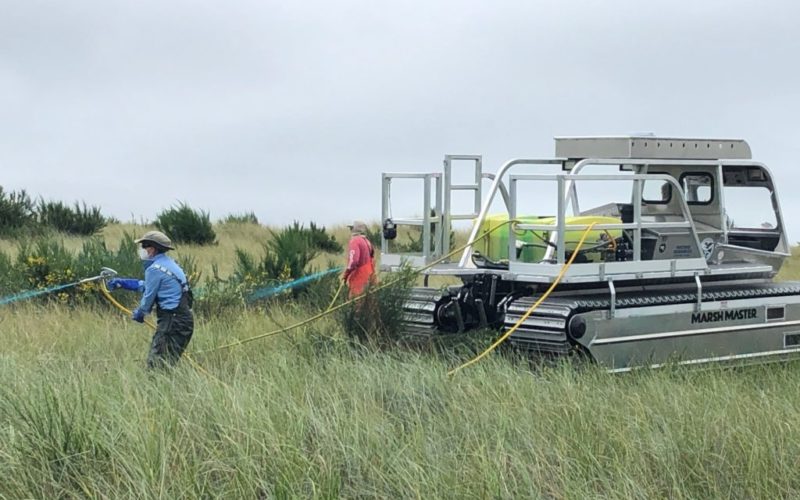

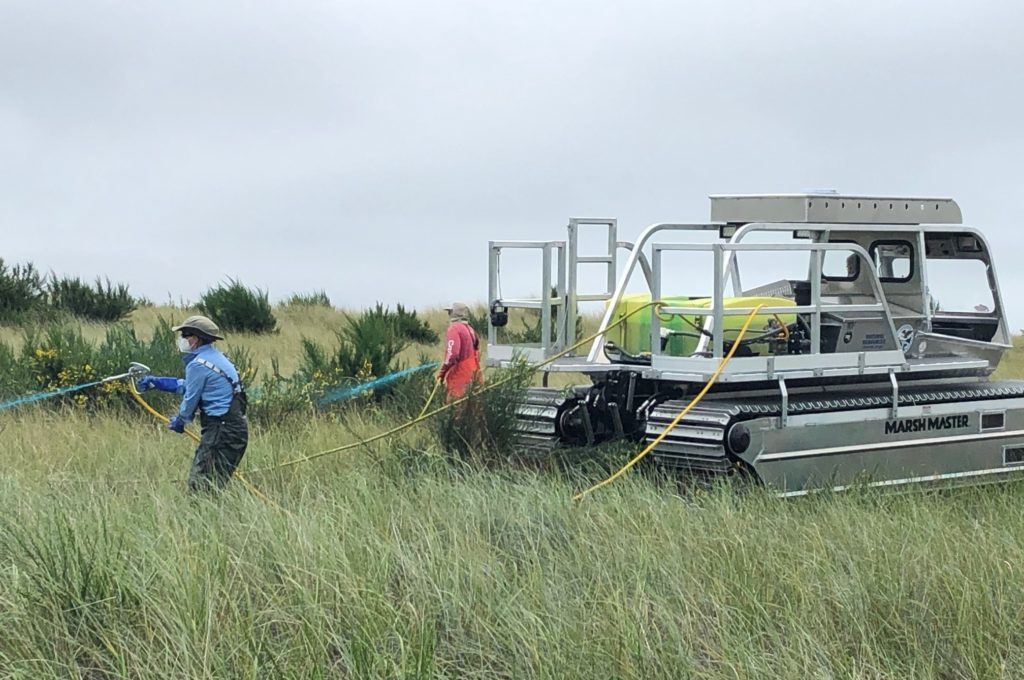

MM-2LX Herbicide Spray Rig

The MM-2LX can be outfitted with a Herbicide Spray Rig that works extremely well in applications such as mosquito control, invasive plant control, or pipeline and right-of-way maintenance.

  • 110 gallon bolt-on spray rig package for herbicide or pesticide applications
  • Equipped with a suction hose and strainer
  • Easily replenish tank by dropping hose into available water source
  • Available in hydraulic- or gas-driven version
  • Optional height adjustable, boomless nozzle spray bar

Watch Video

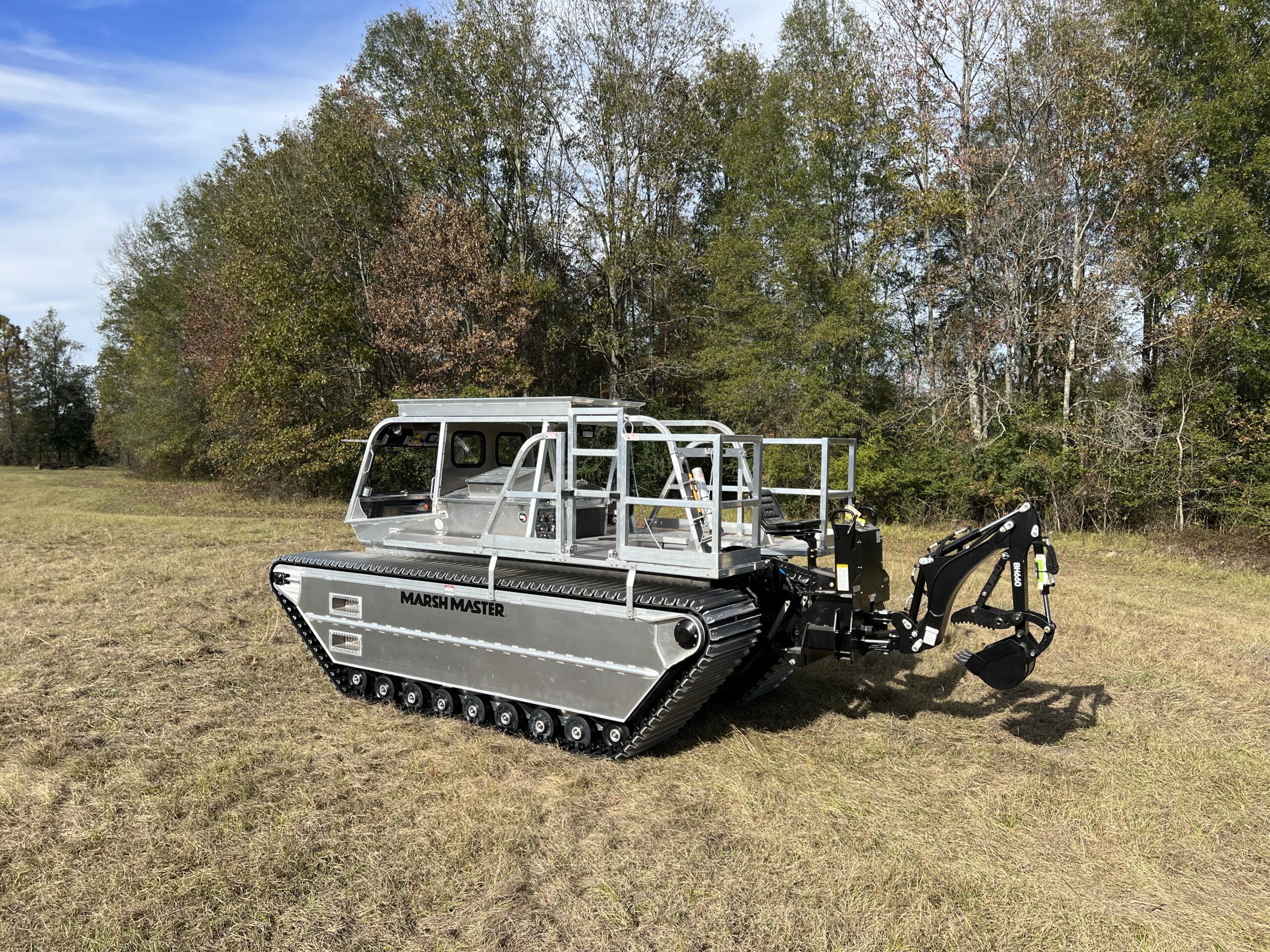

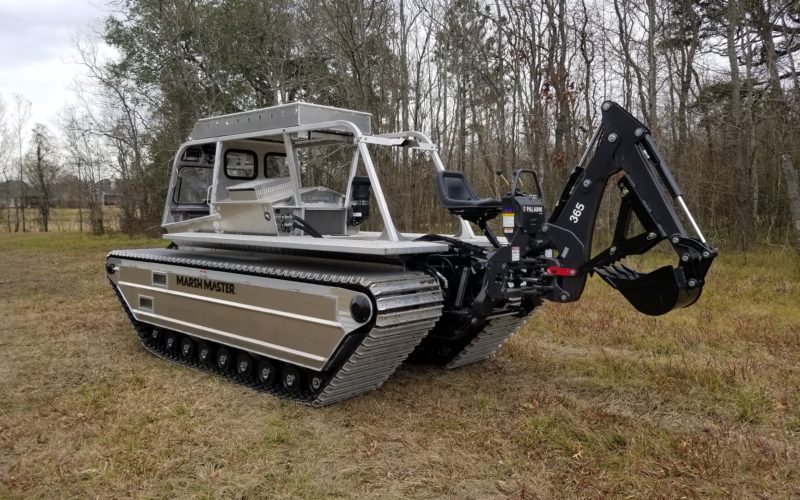

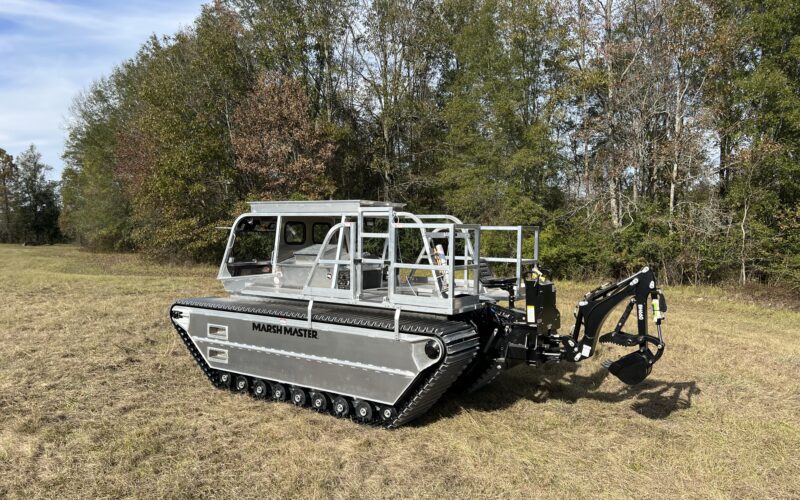

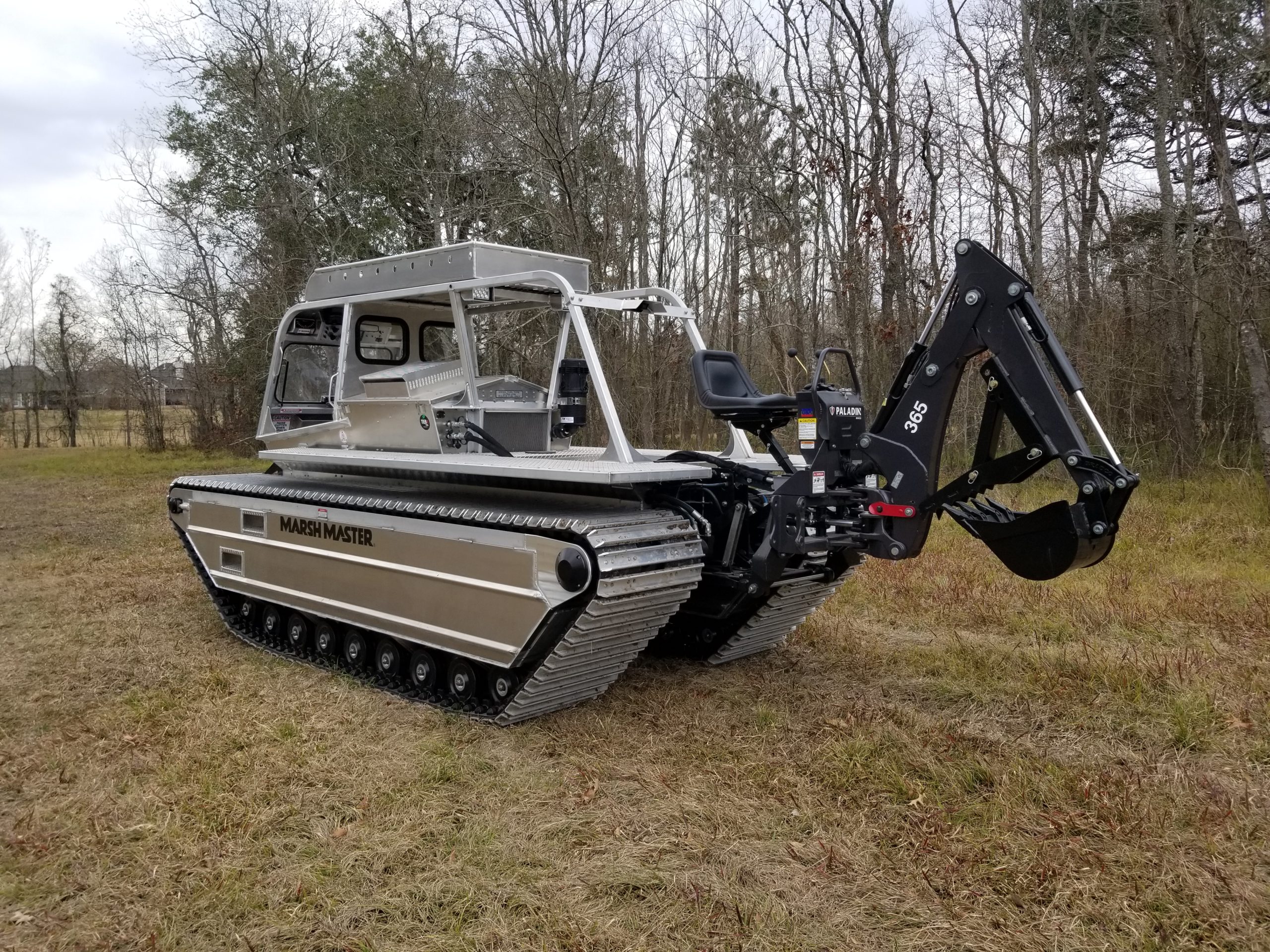

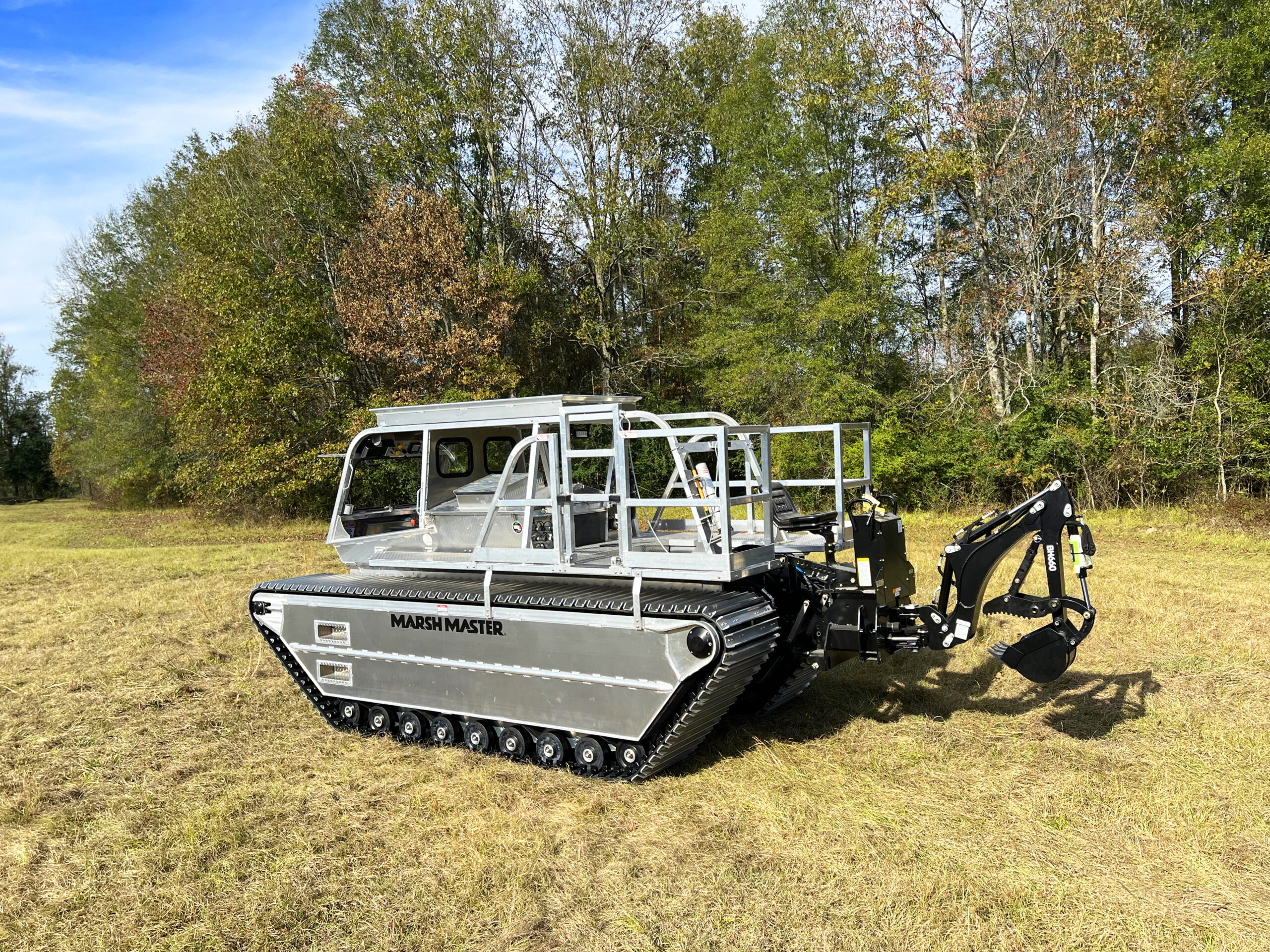

MM-2LX Backhoe

The MM-2LX can be equipped with a Bradco 365 tractor backhoe, which is designed to perform small excavation jobs in environmentally sensitive wetland environments where the use of a conventional backhoe, trackhoe or large marsh buggy excavator is not practical.

  • Digging depth of 5.5 ft
  • Easily pins on using our 3-point hitch system
  • Powered by the standard auxiliary hydraulic tool circuit.
  • Operates in any environment requiring a fully amphibious, light weight, versatile, extremely mobile and transportable marsh buggy
  • Ideal for small wetland excavation jobs.
  • Optional stationary thumb

Watch Video

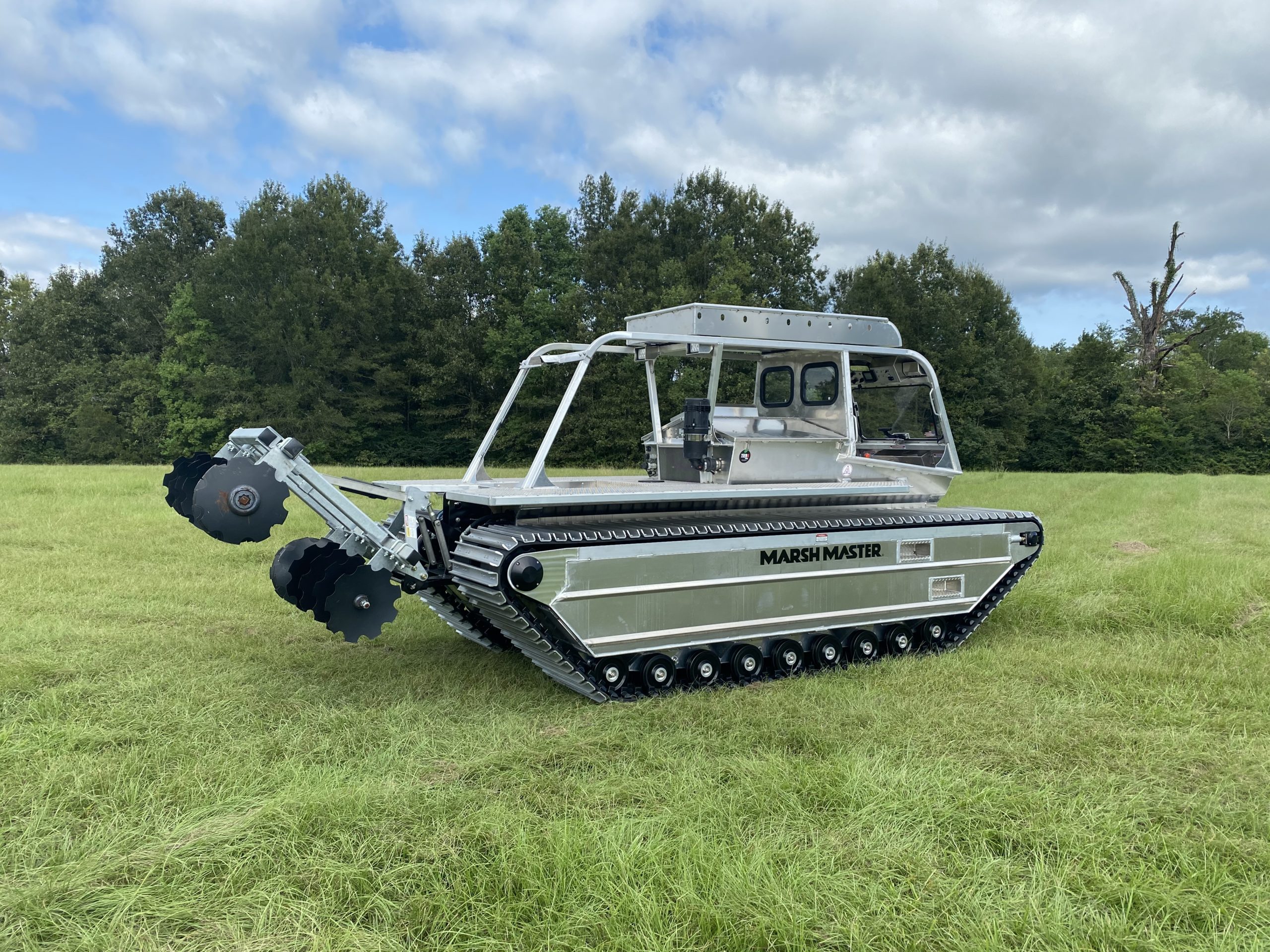

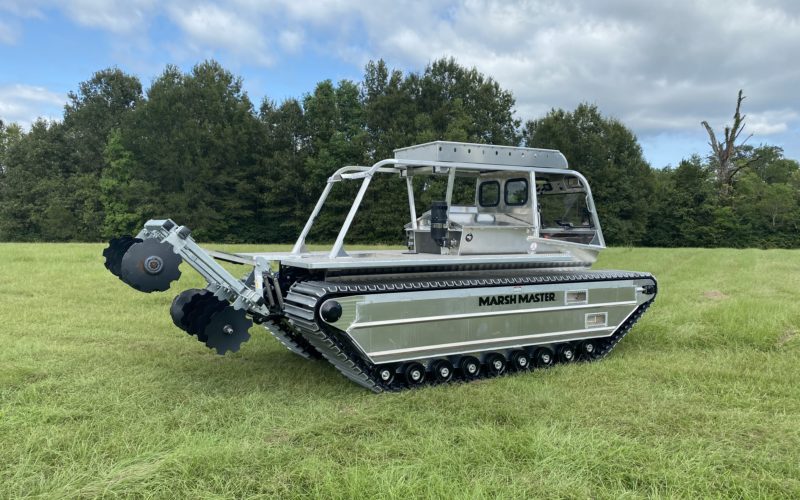

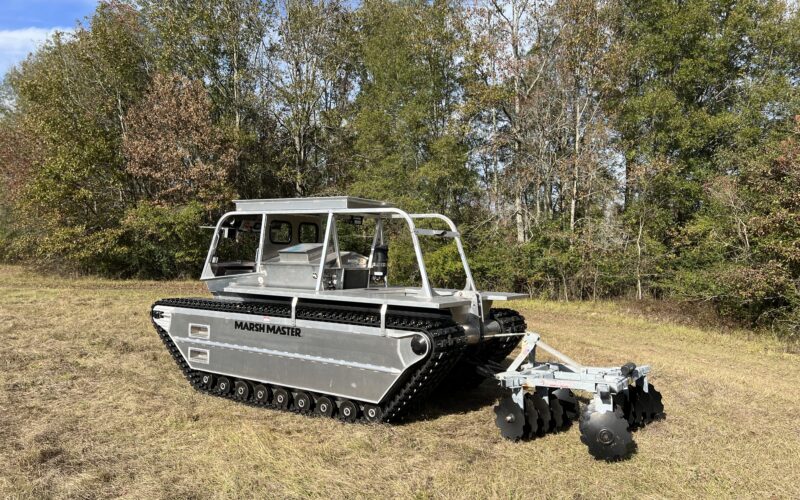

MM-2LX Disc Harrows

  • Disc Size – 5-1/2’
  • Cutting Width – 66”
  • Max Cutting Depth – 6”
  • Number of Discs – 16
  • Disc Blade Diameter – 18”
  • Frame Type – 3 in. square tubing
  • Disc Spacing – 7.5”
  • Maintenance Free Sealed Bearings
  • Specs could change during procurement process

Request More Info

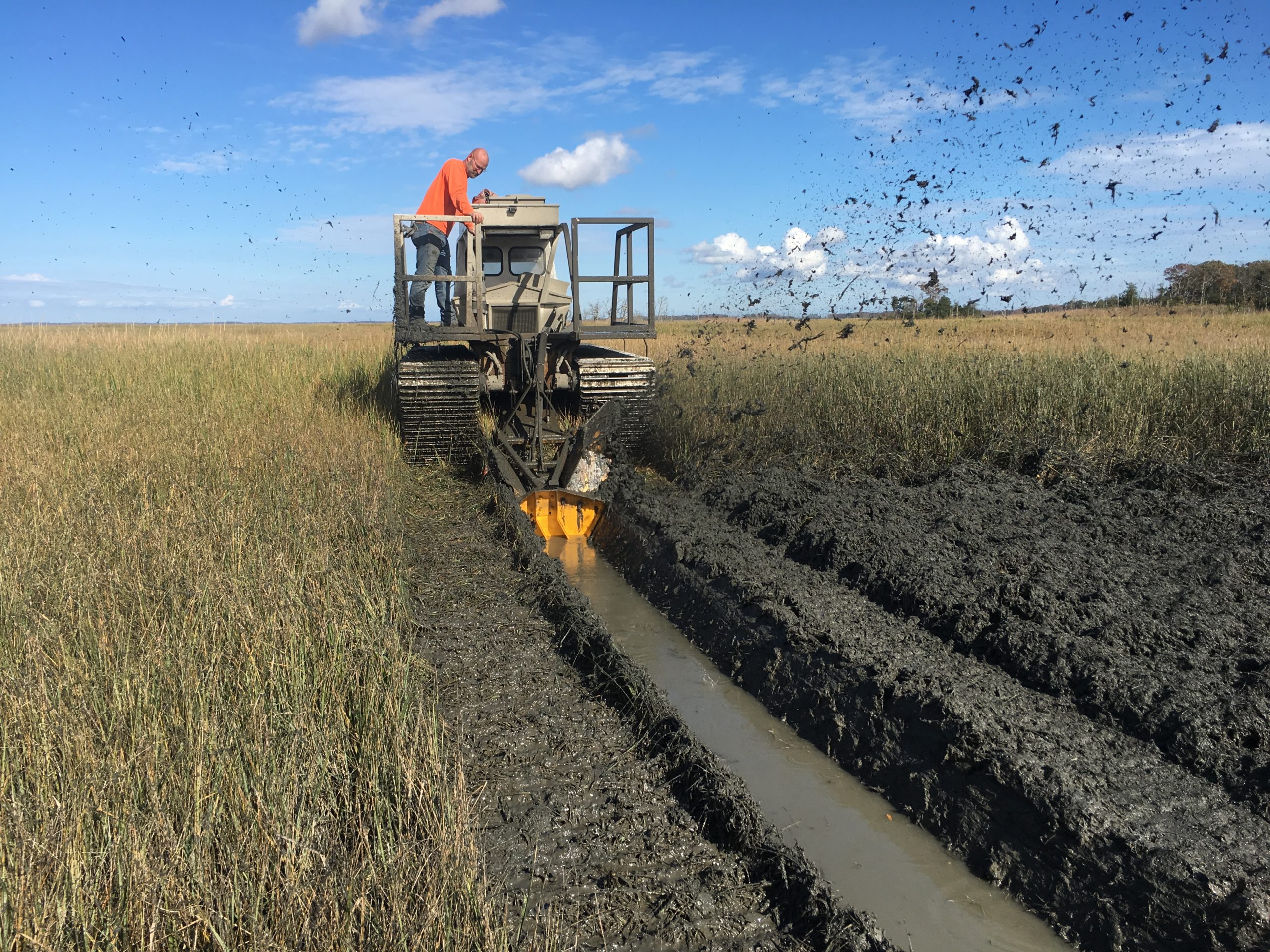

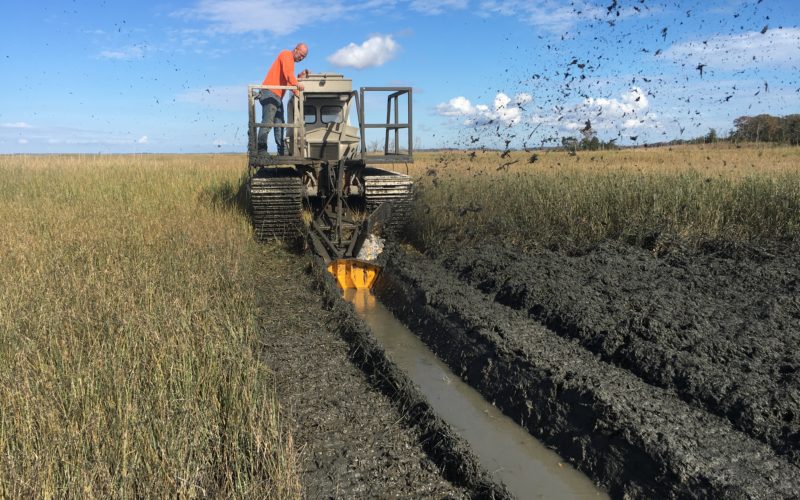

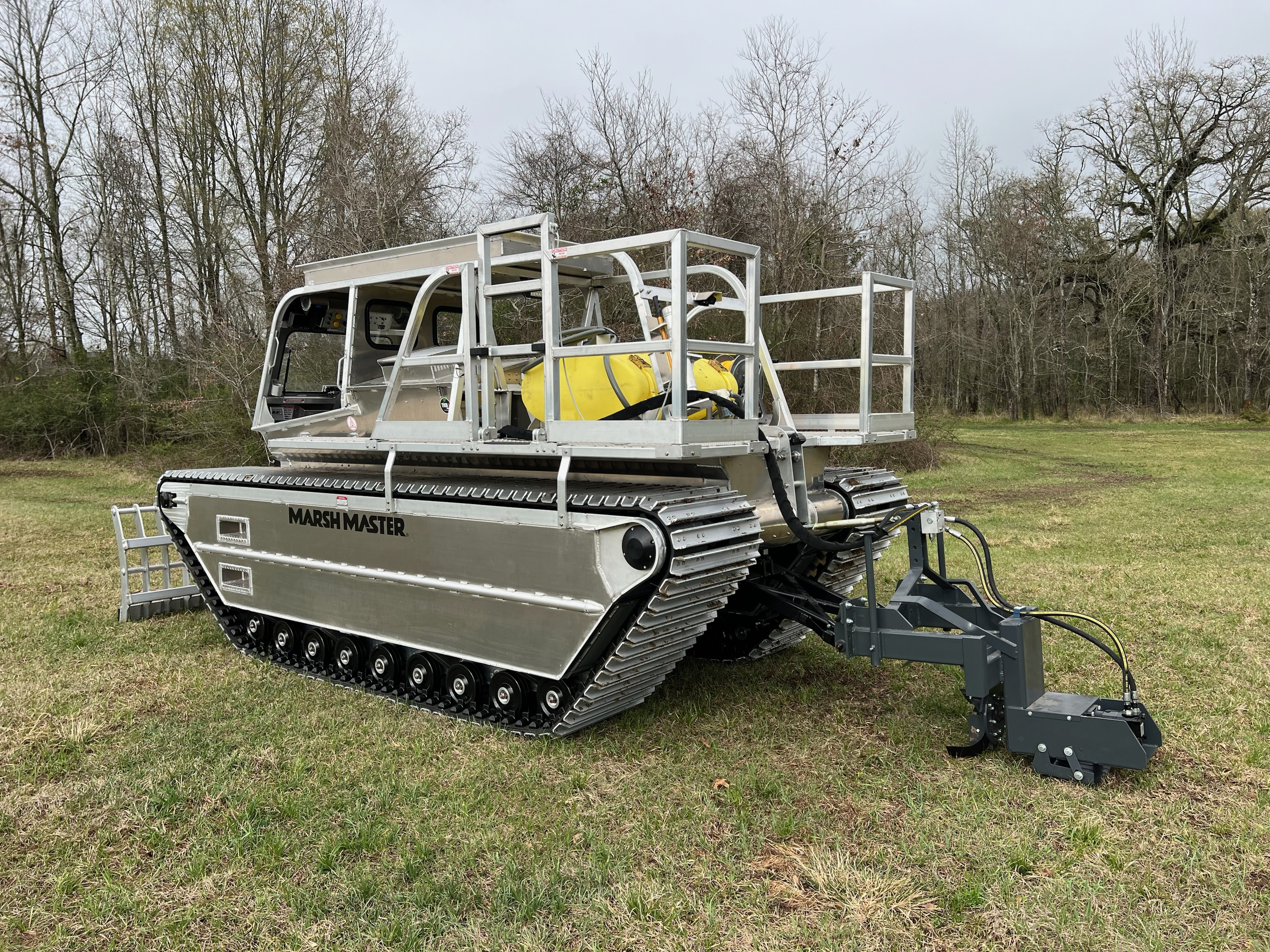

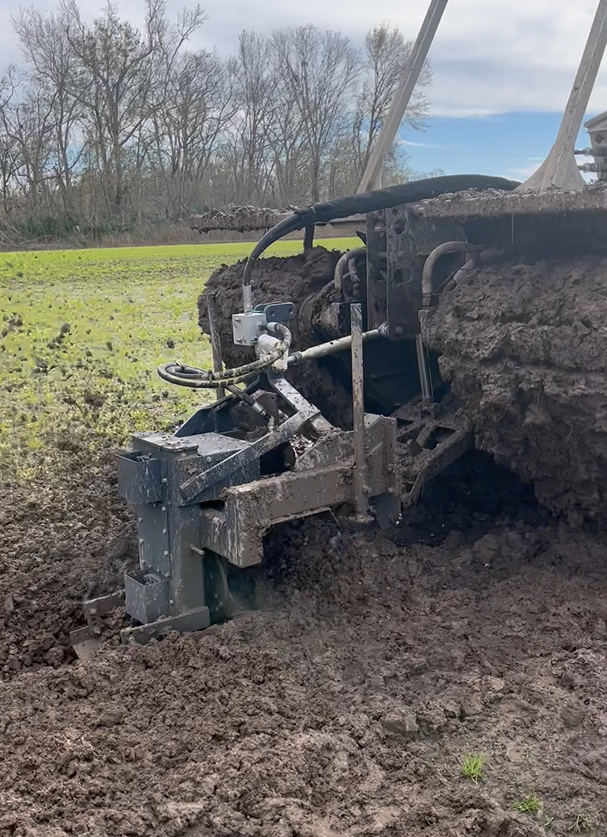

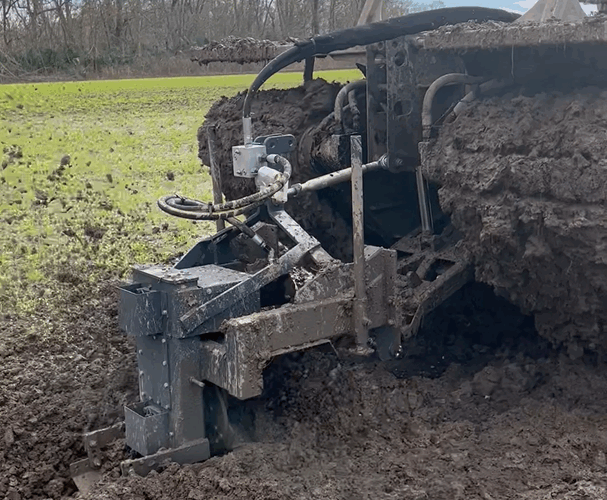

MM-2LX Ditcher

The MM-2LX Ditcher is a hydraulically driven unit that is designed specifically for wetland applications.

  • Capable of cutting up to a 24″ deep V-ditch
  • Cuts 100 ft of clean uniform ditch per hour at minimum
  • Ideal for mosquito abatement or wetland management projects
  • Made with all steel construction
  • Has a cast iron gearbox with oil bath side gearbox
  • Has a 3-point hydraulic hitch
  • Has a powder coat paint finish

Watch Video

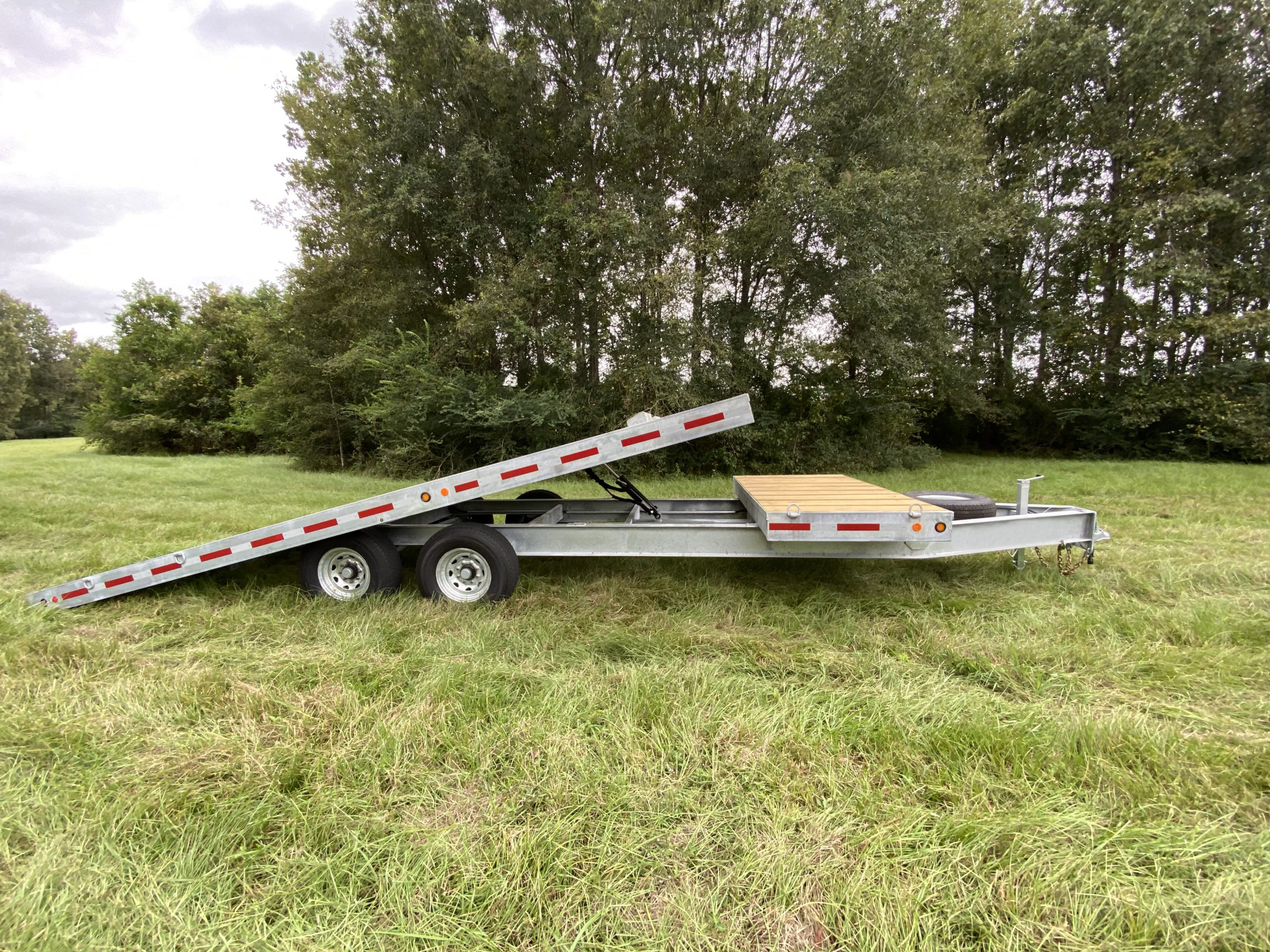

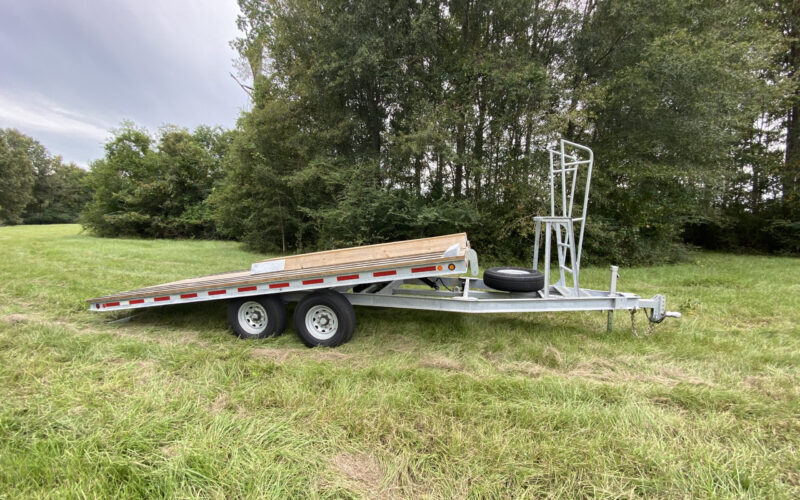

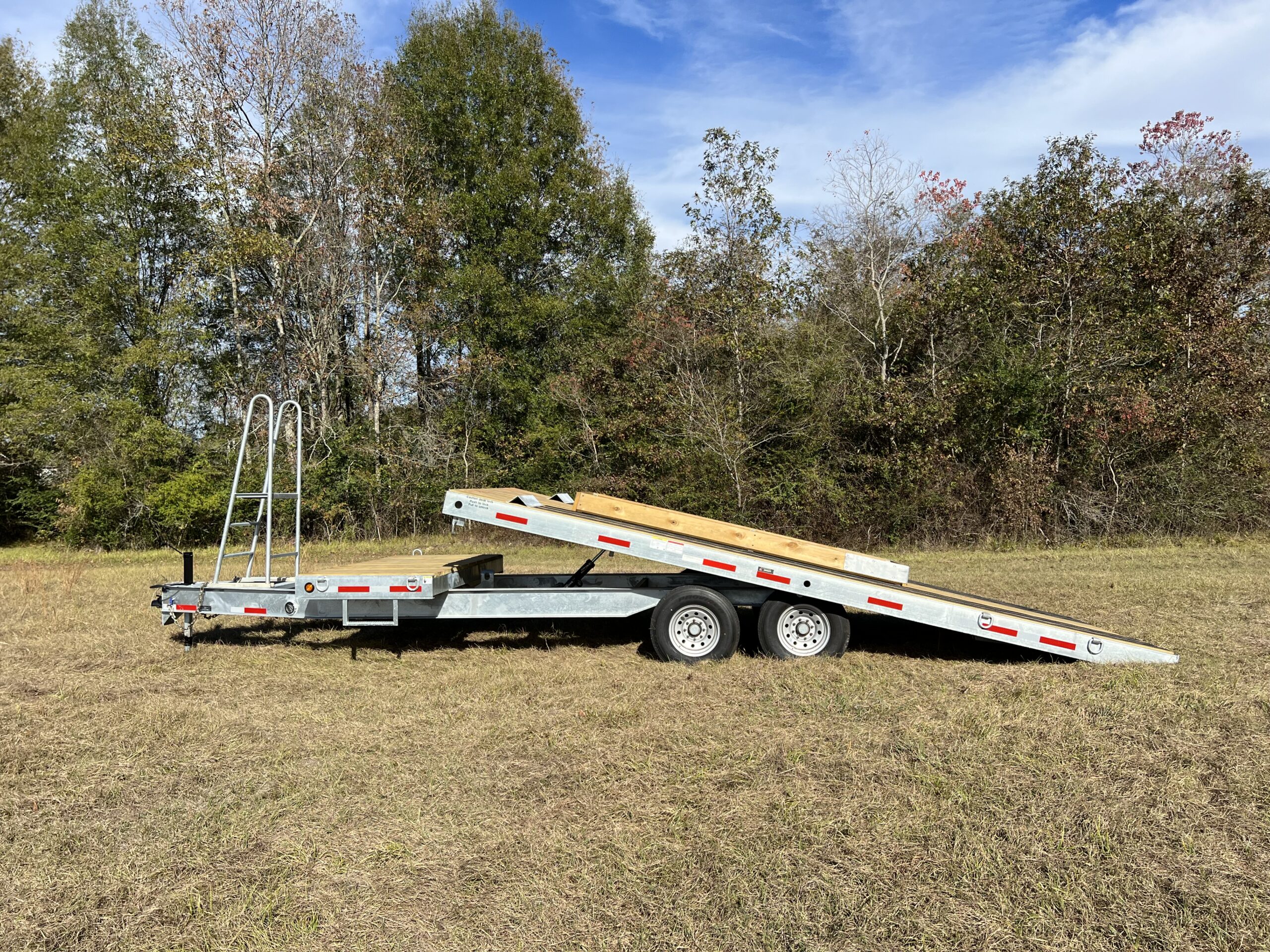

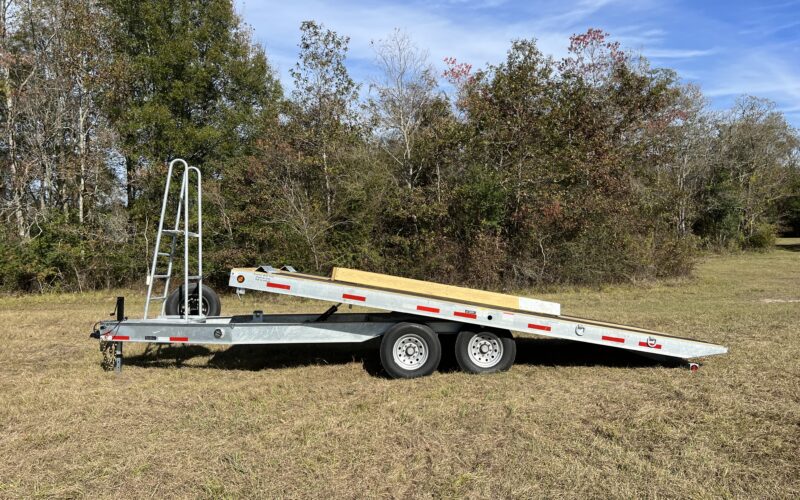

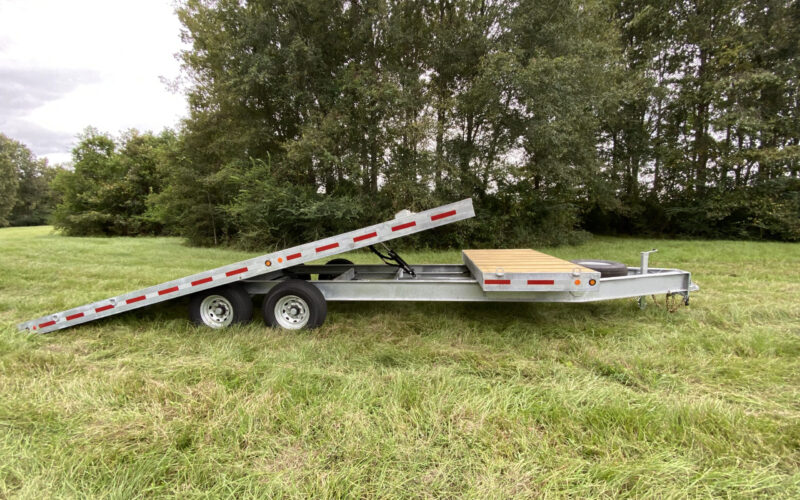

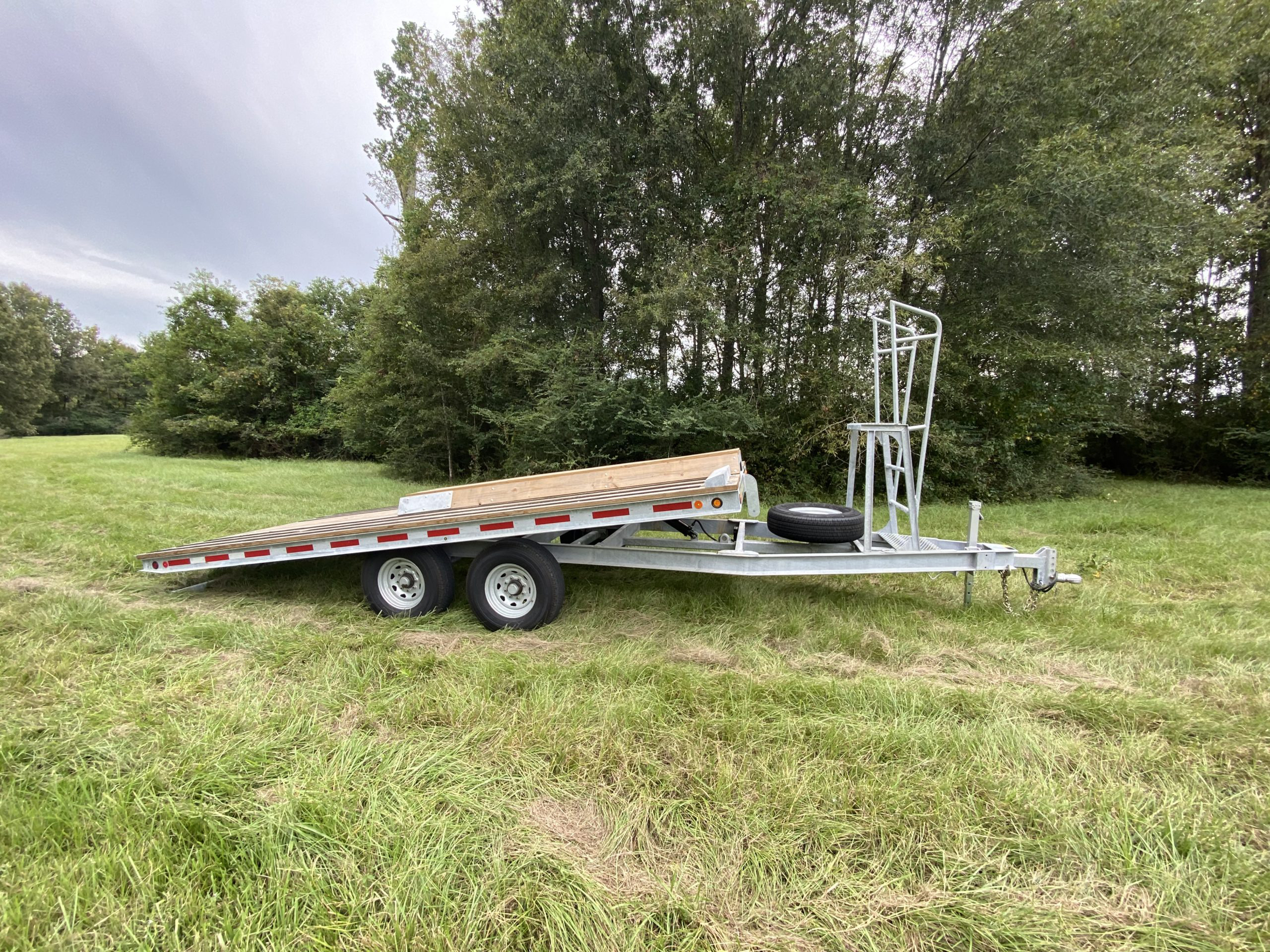

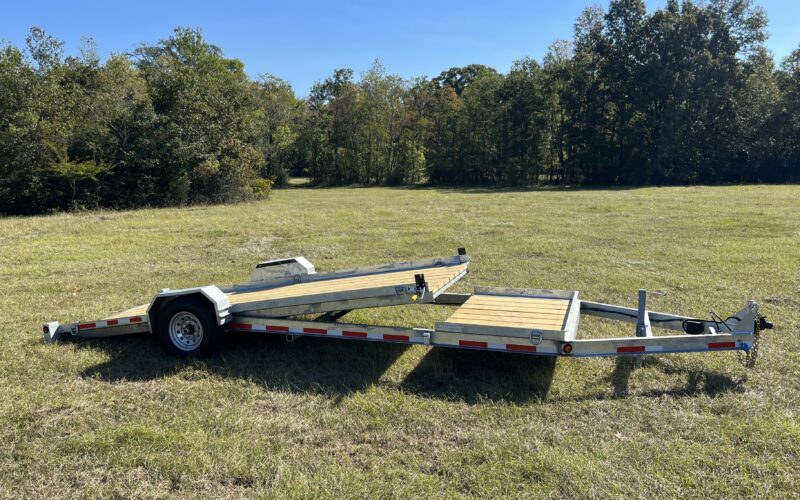

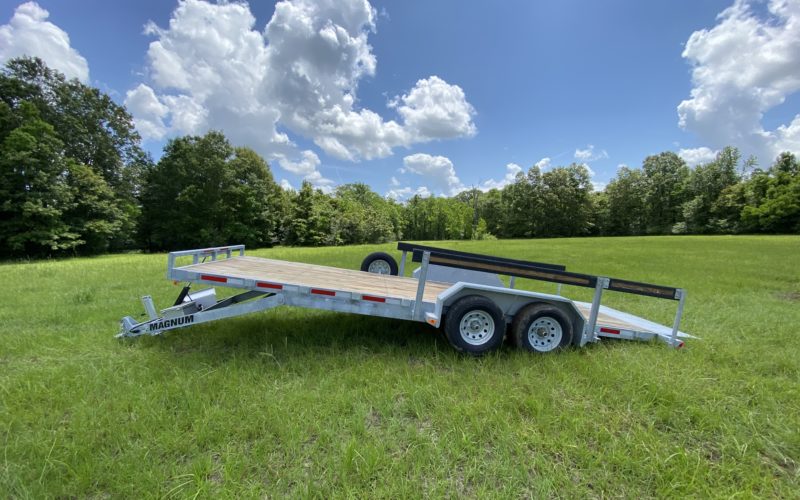

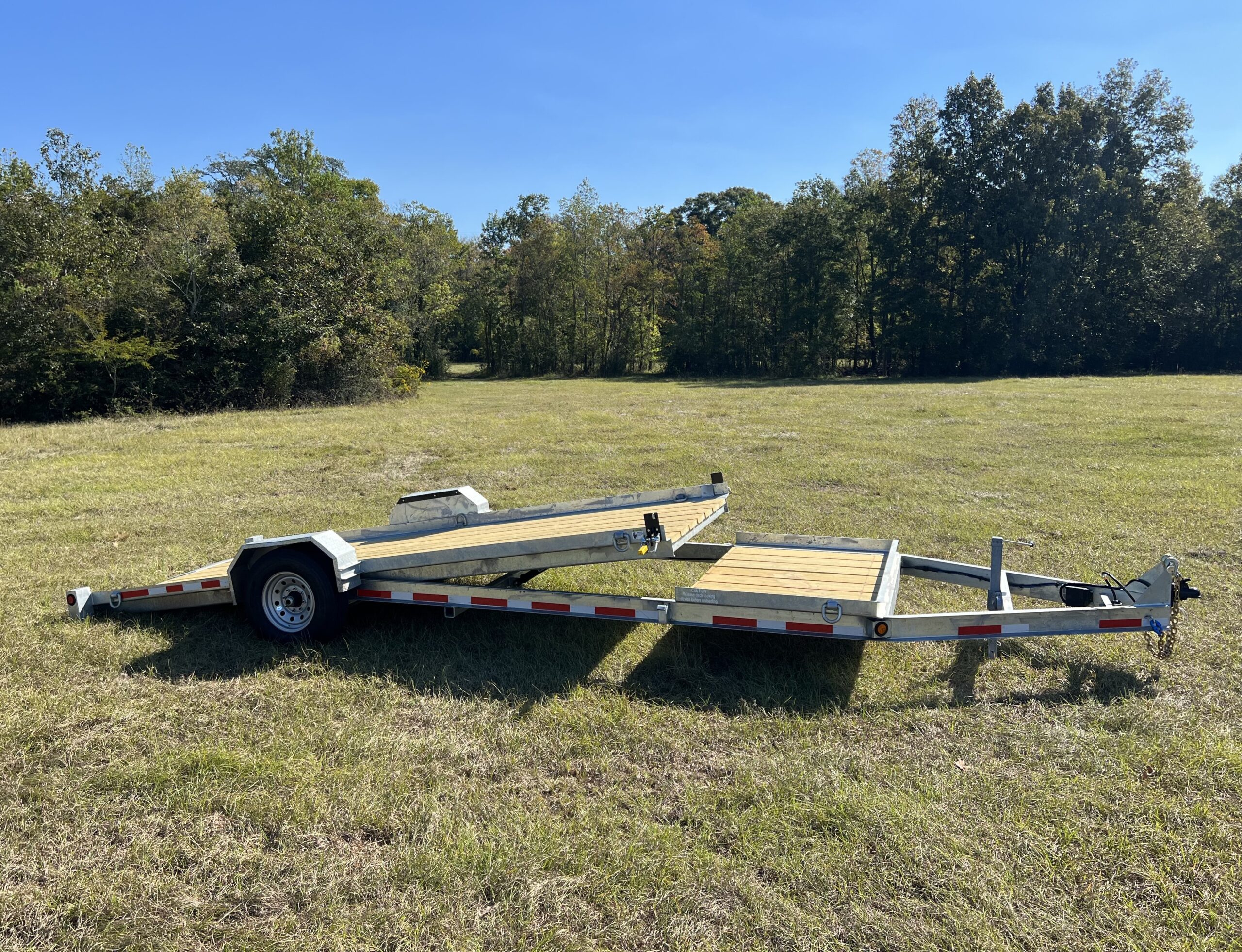

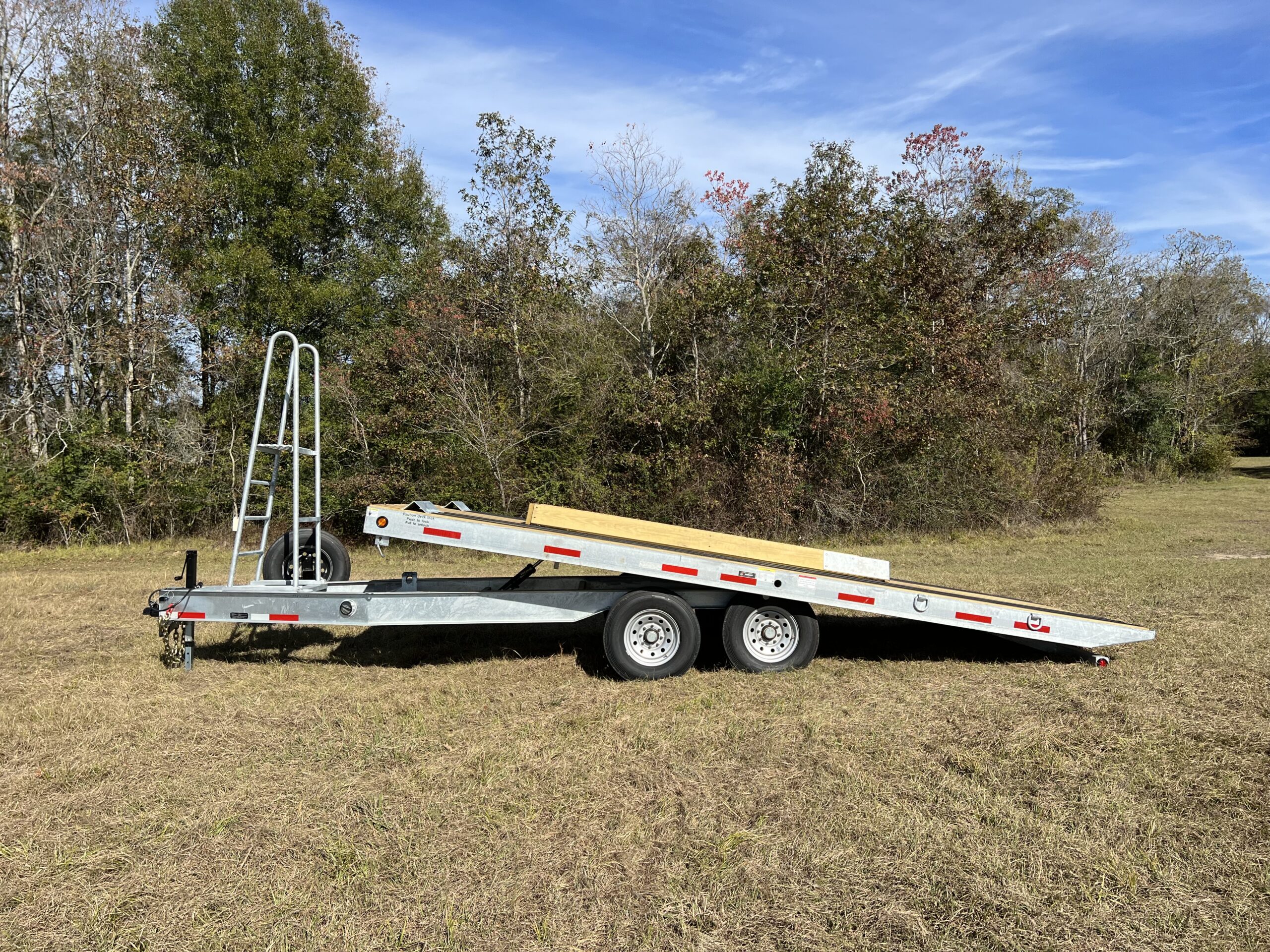

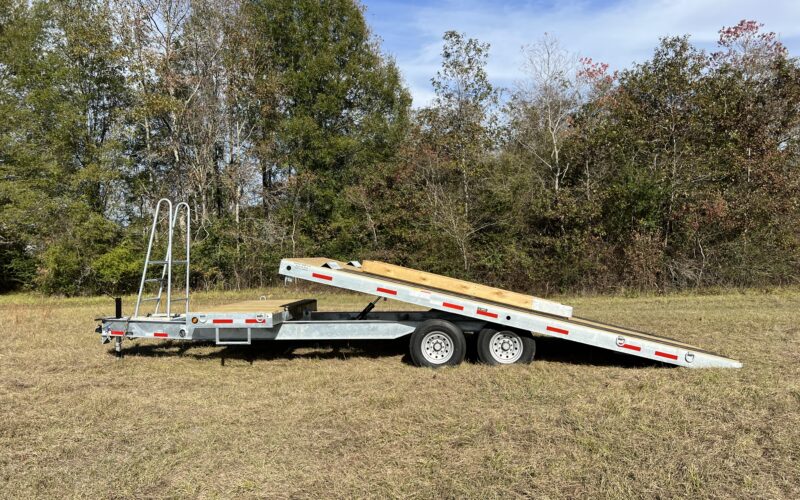

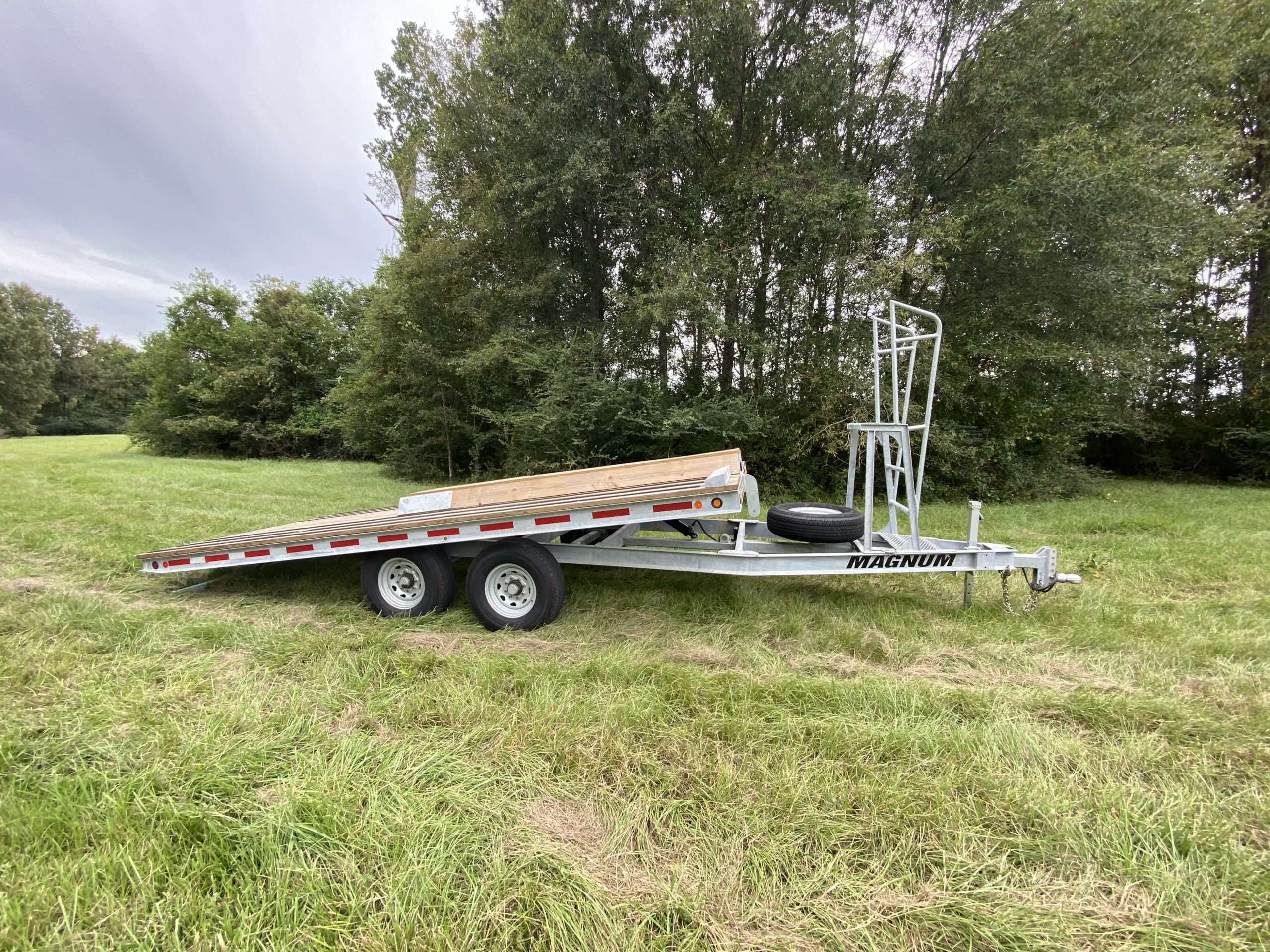

MM-2LX Galvanized Heavy Duty Custom Trailer

The MM-2LX can be towed on our custom tilt-deck trailer. This trailer is designed specifically for the MM-2LX, so it is a perfect fit.

  • No ramps necessary
  • Simply remove the tie down straps and the tilt-bed pin, and back the buggy off the trailer.
  • The top deck will tilt smoothly to create a ramp to the ground once the buggy passes the pivot point.
  • Step ladder makes for easy access in and out of the buggy.
  • Middle hump guides the buggy and ensures that it stays in the middle of the trailer.
  • Optional fixed deck in front of tilt deck for multiple attachment transport.

Watch Video

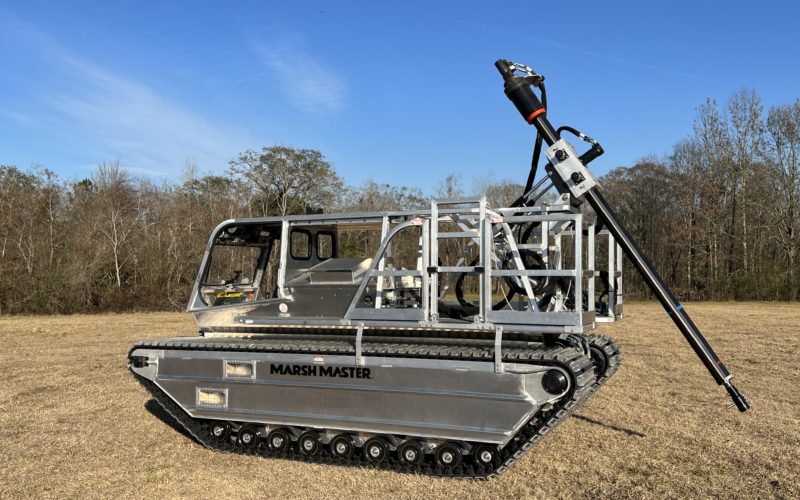

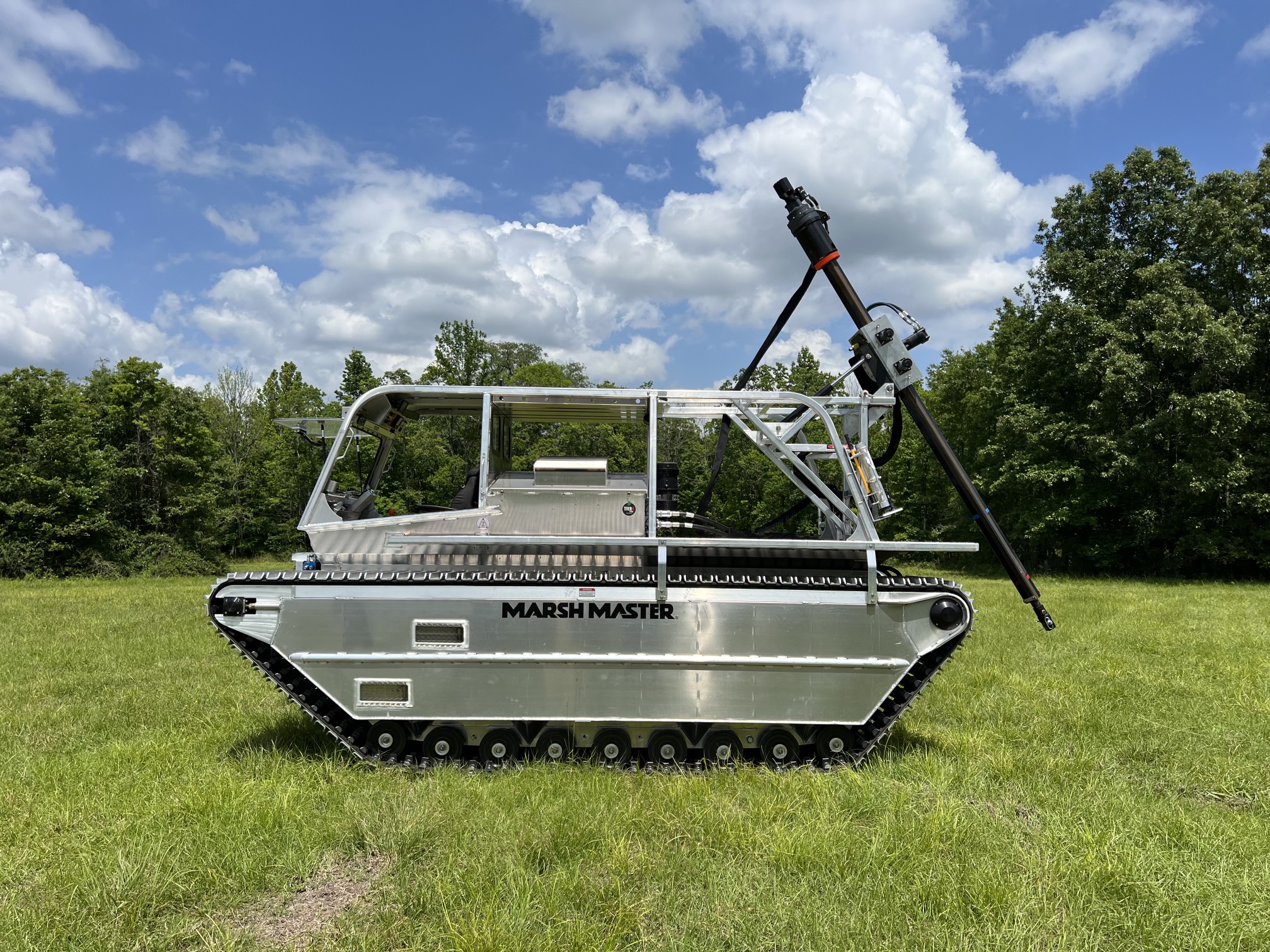

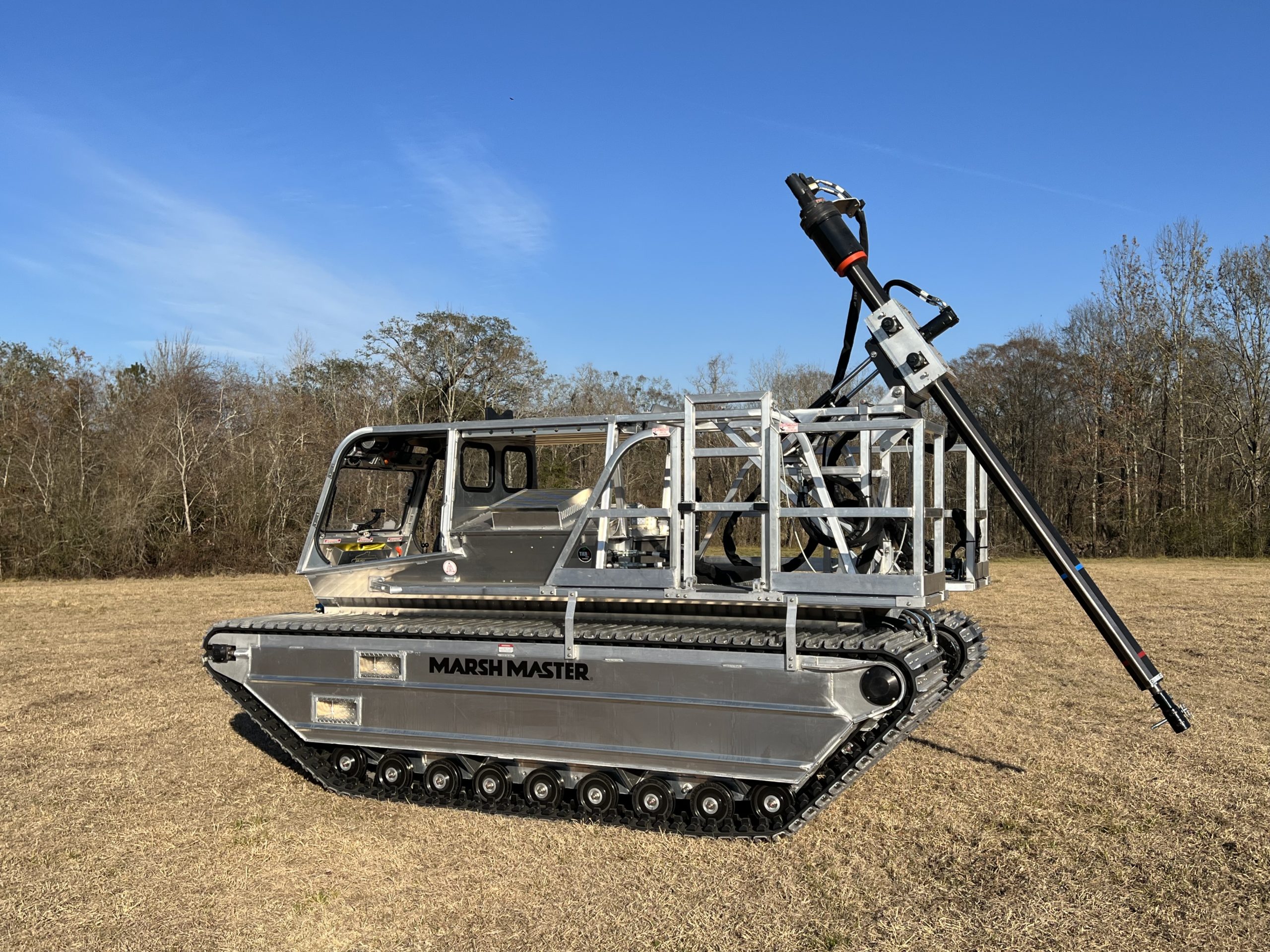

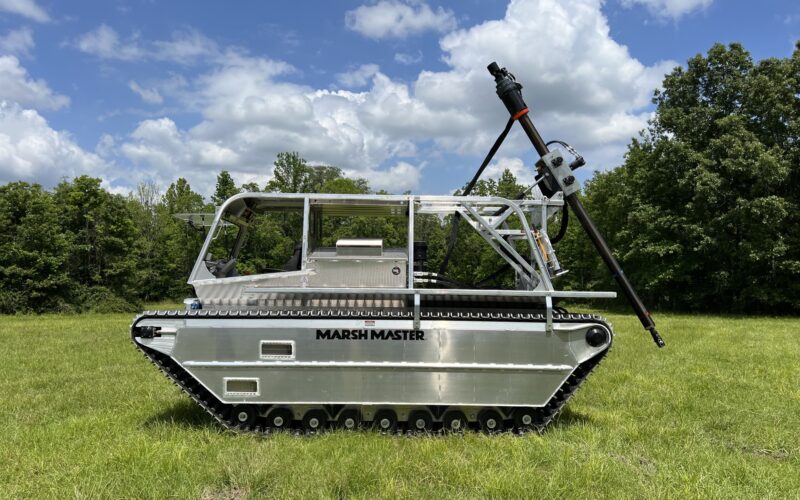

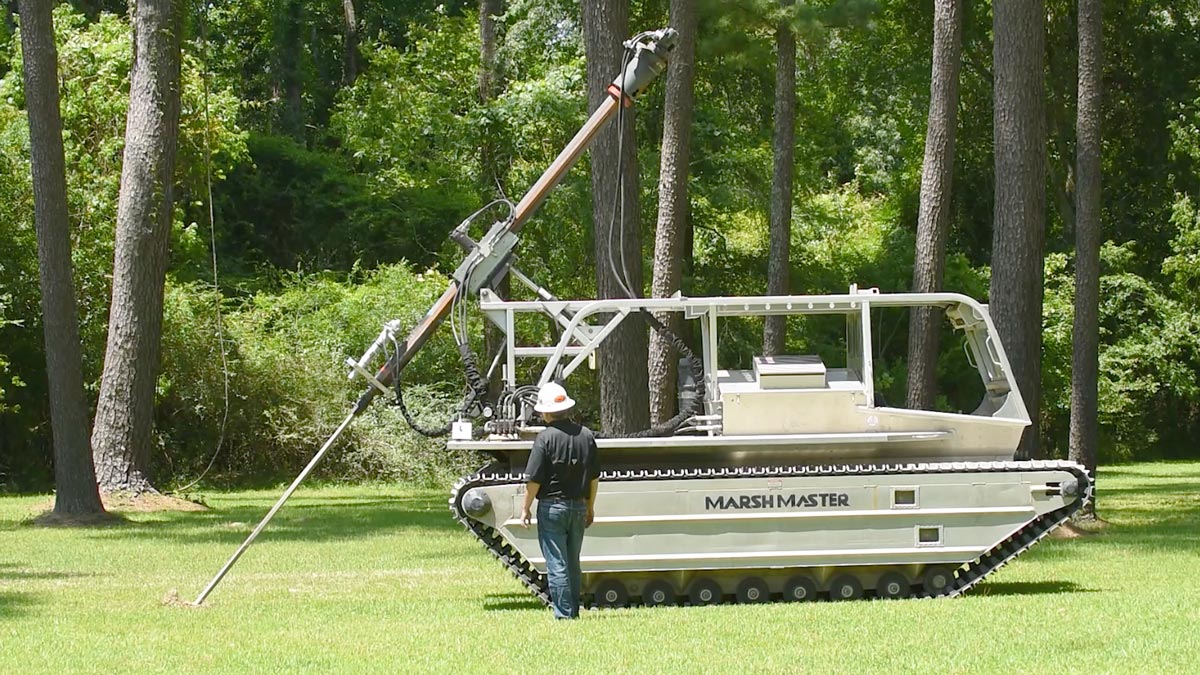

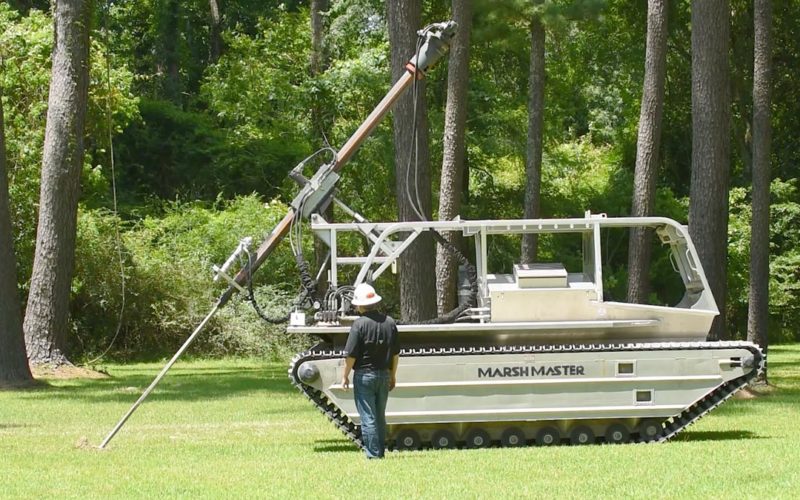

MM-2LX Anchor Master®

(Patent # US 10,174,559 B1)

The MM-2LX Anchor Master® is a dual purpose attachment for transmission guy wire anchor and ground rod installation in difficult-to-access wetland terrain.

  • Capable of setting distribution or transmission anchors vertically and at desired angles employing 5500 ft/lbs of torque.
  • Low-cost alternative to traditional access methods such as matting.
  • Low ground pressure minimizes environmental impact.

Watch Video

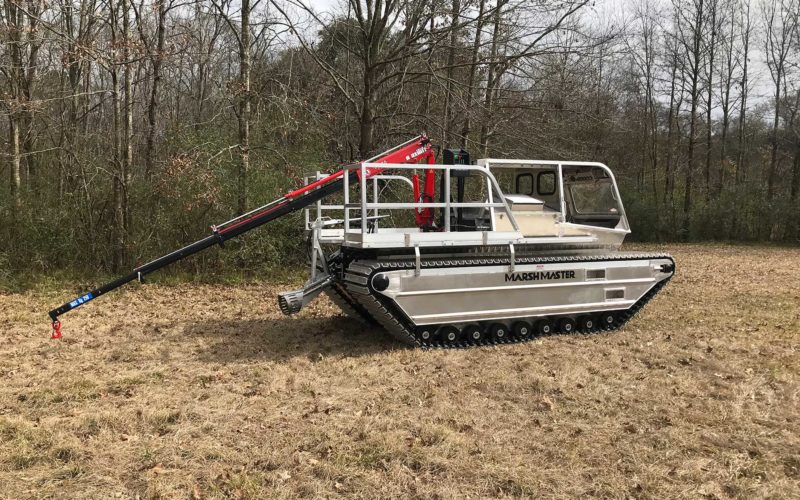

MM-2LX Crane

The MM-2LX equipped with a telescoping boom crane gives operators the ability to pick and transfer loads from a mobile, amphibious platform.

  • Can perform augering, anchoring and lifting tasks
  • Perfect for wetland terrain inaccessible by other equipment
  • Capable of setting a 45’ class 4 utility pole

Watch Video

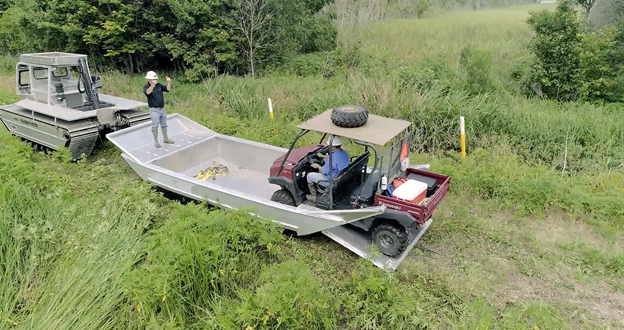

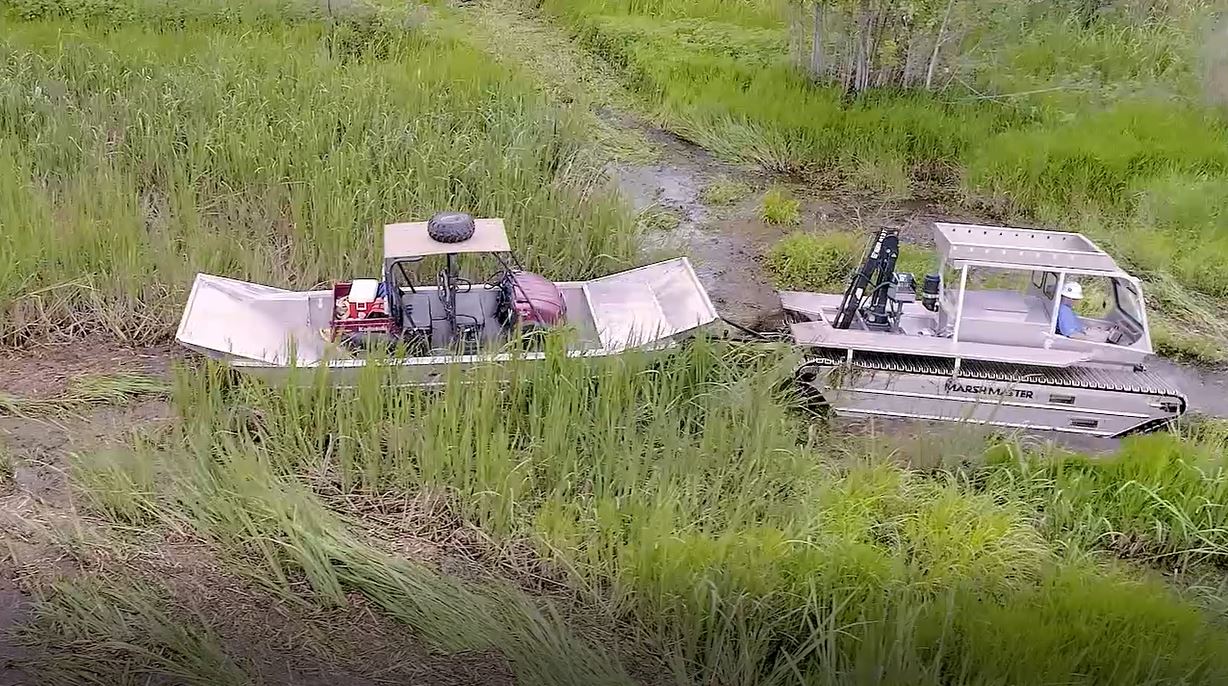

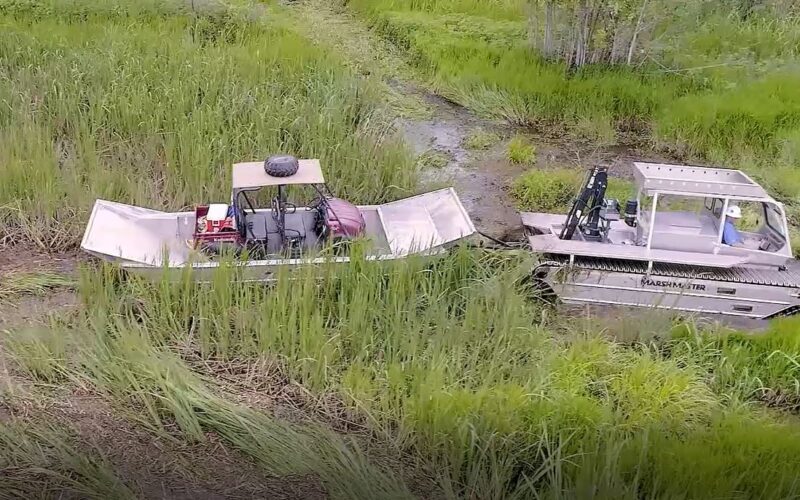

Marsh Master® Slick Sled®

(Patent # US 10,464,383)

The Slick Sled® is an innovative, environmentally low-impact transportation system that enables operators to safely haul personnel and materials in a single trip through marsh, swamp, and all the dry ground in between.

  • Large load space to safely transport equipment
  • Distribute loads between the Slick Sled® & Marsh Master® vehicle for greater capacity and safety
  • Safely floats up to 3500 lbs
  • Constructed from 3/16” 5052 aluminum
  • Bolt-on ultra tough UHMW polymer sheet on the bottom and sides
  • Steel A-frame tow bar
  • Low impact on sensitive environments, mitigates rutting
  • Landing craft-type, fold down rear transom

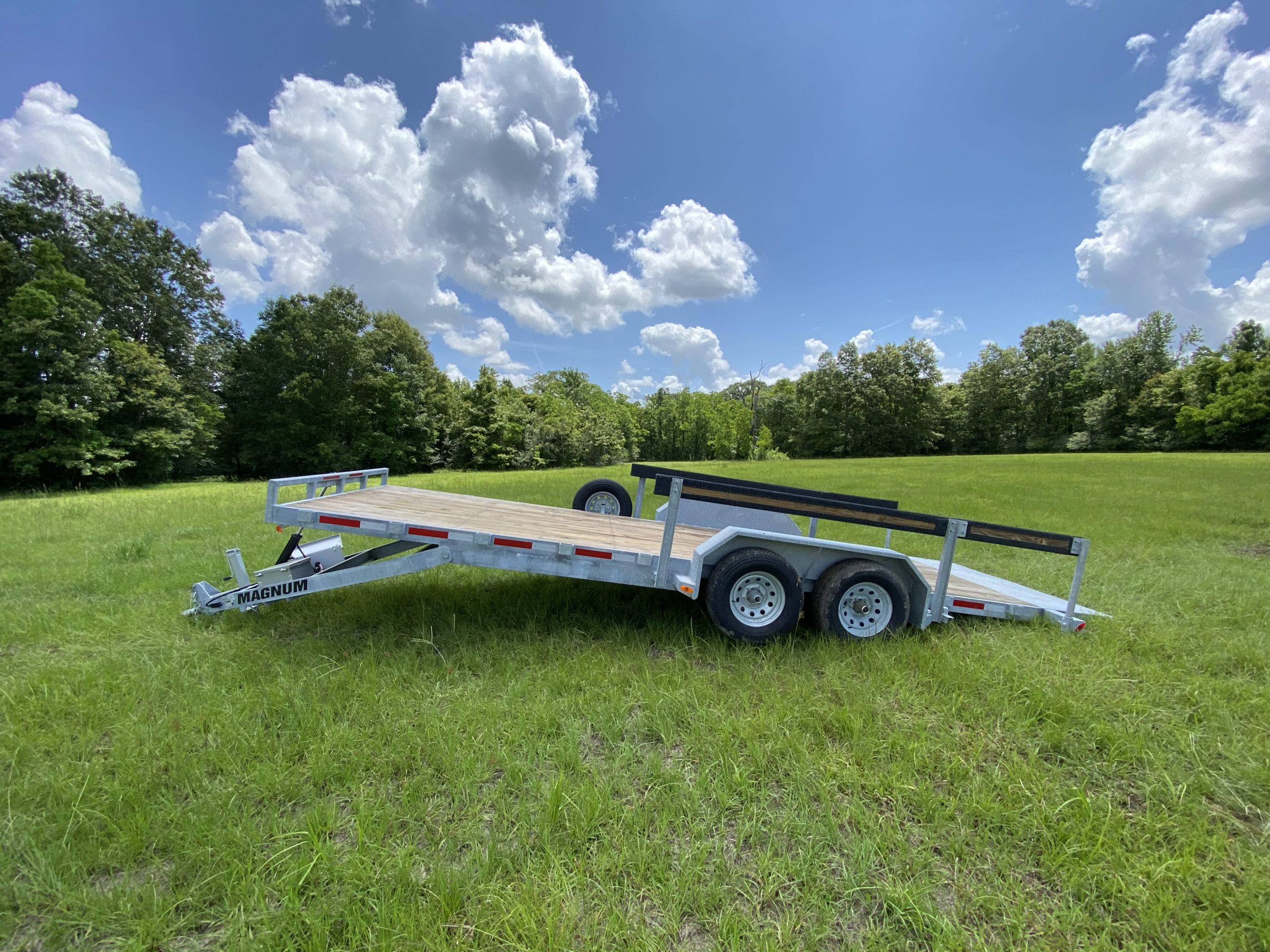

  • Optional galvanized tilt-deck trailer with electric brakes

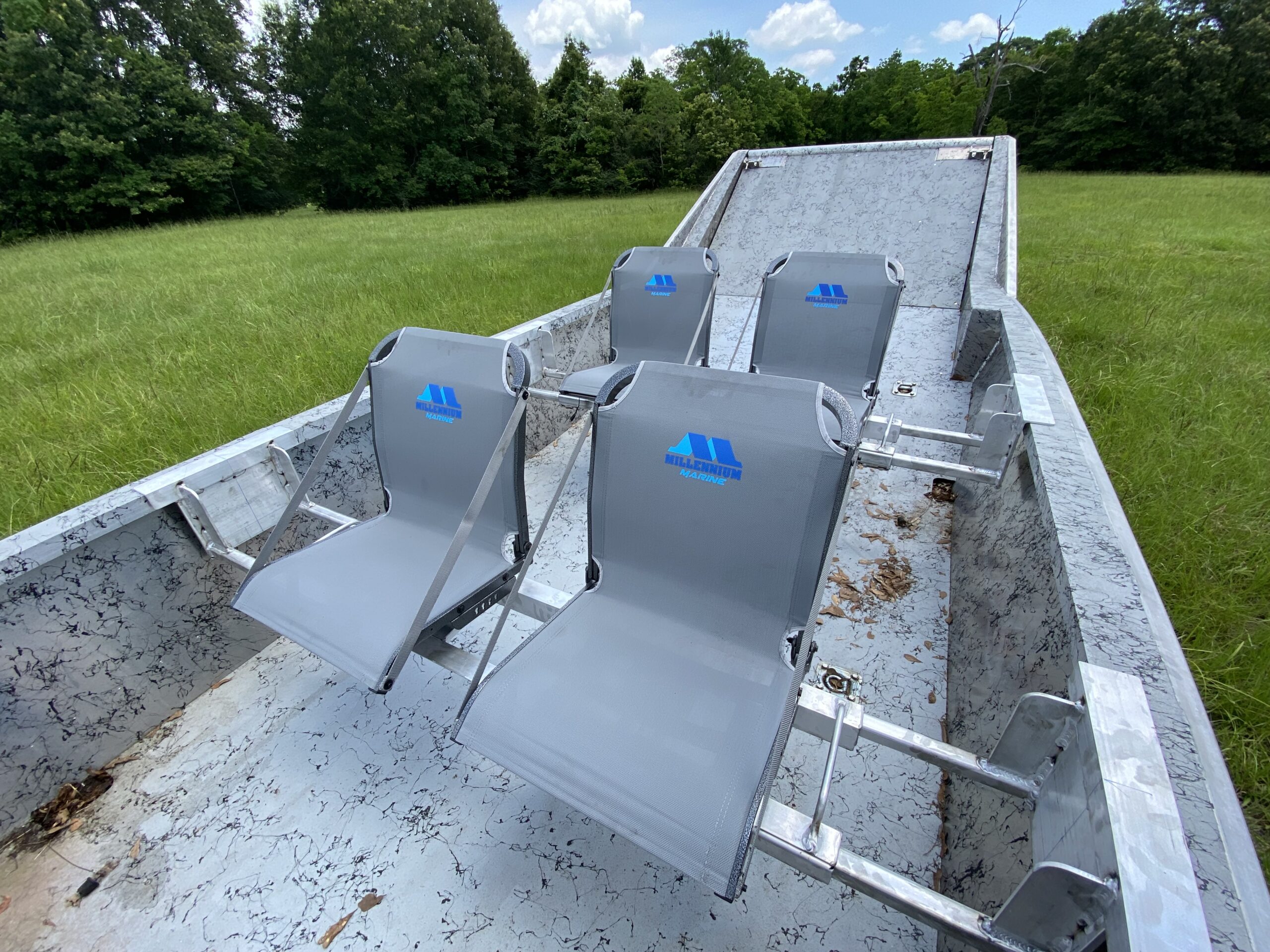

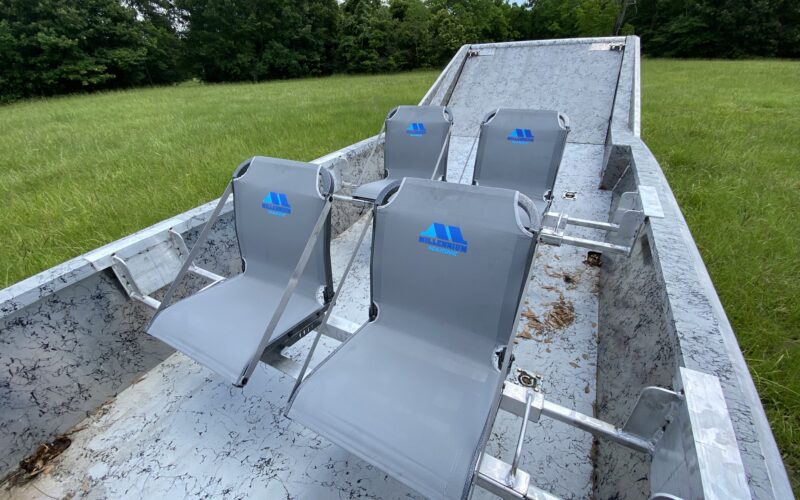

  • Optional seating for up to 9 passengers
  • Optional hydraulic plumbing for attachments or tools
  • Optional spud system to anchor the Slick Sled® when floating for a rock solid work platform
  • Optional Deckover™ hydraulic side for debris removal

Watch Video

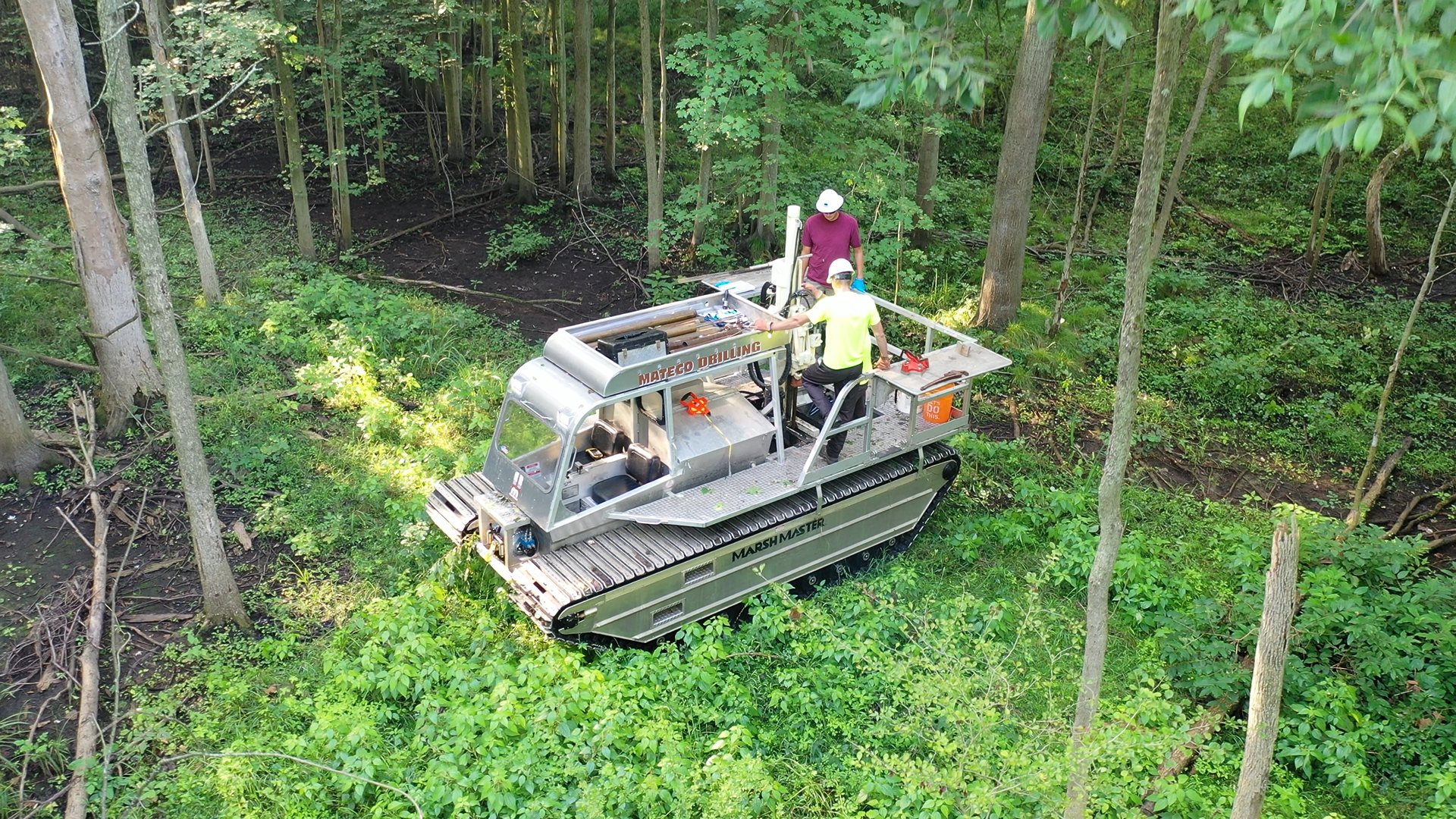

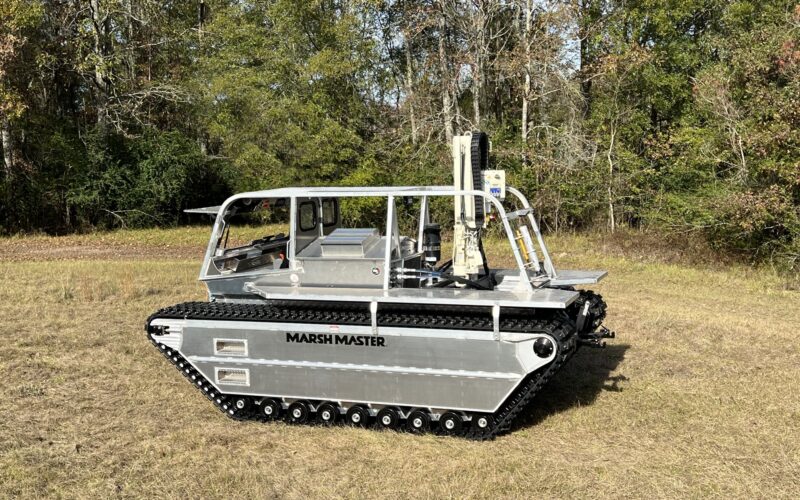

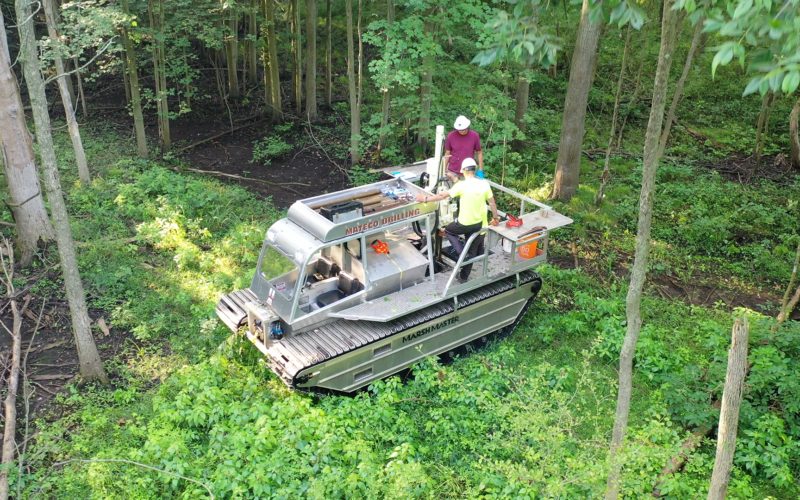

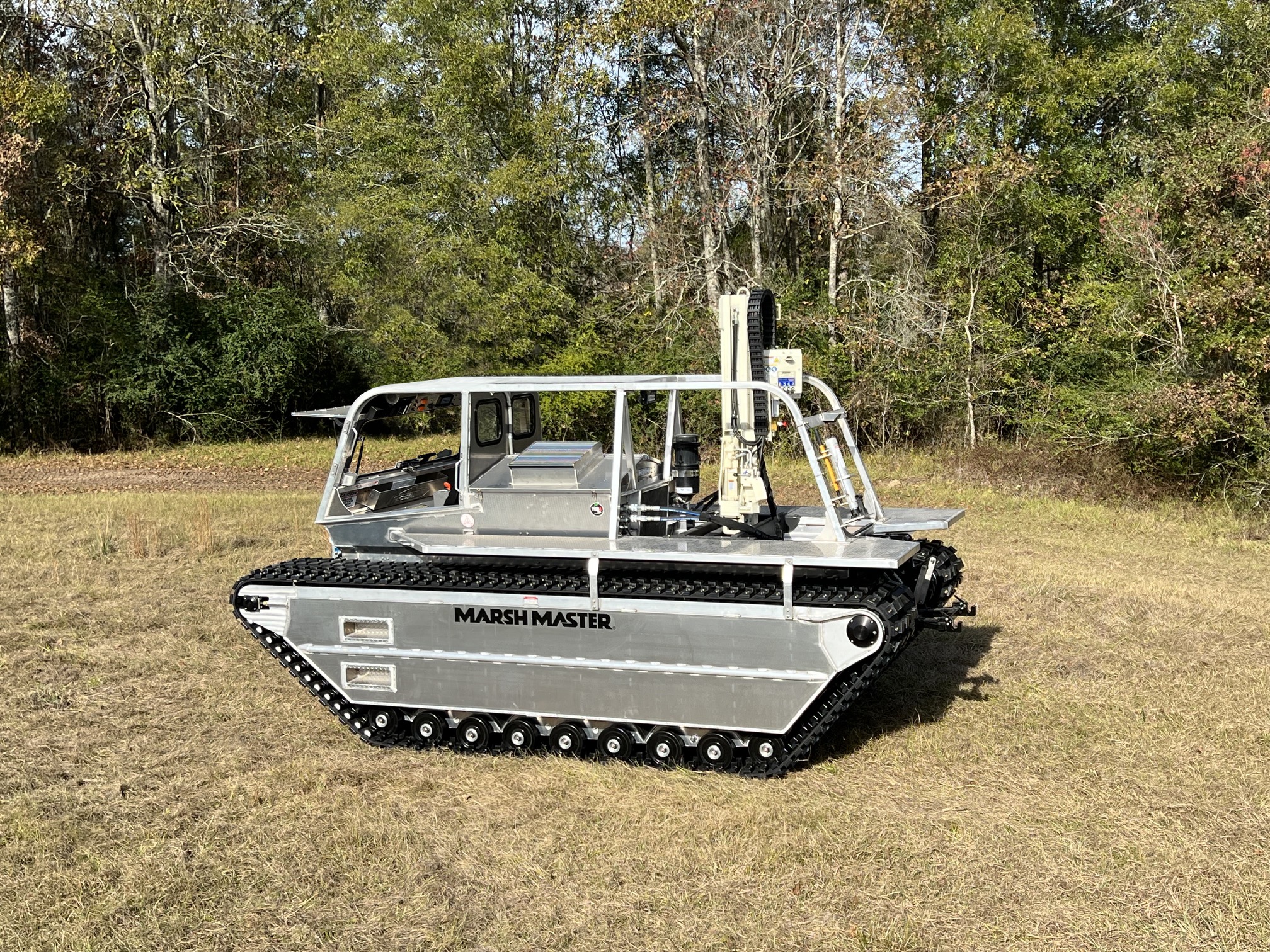

MM-2LX Geoprobe® 540M

The MM-2LX can be rigged with a Geoprobe® 540M for discrete soil sampling in wetland environments.

  • Amphibious capability
  • High mobility
  • High productivity
  • Light weight
  • Low environmental impact
  • Great solution for problems traditionally associated with environmental sampling in wetland areas.

Watch Video

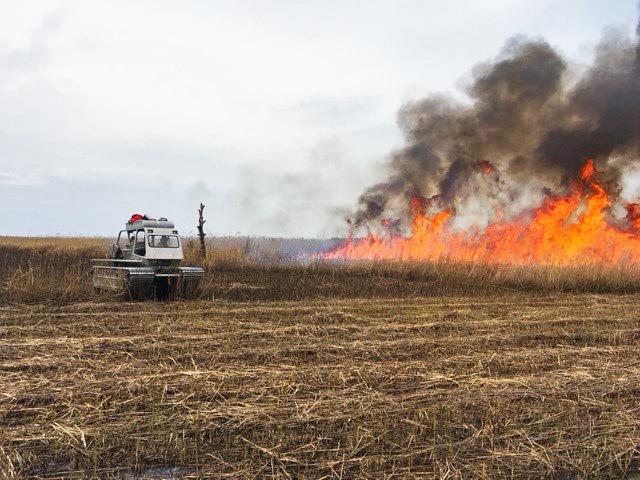

MM-2LX Fire Suppression

The amphibious MM-2LX Fire Suppression Unit is ideal for controlled burns or wetland wildfire suppression in marsh or swamp terrain inaccessible by other equipment.

  • Delivers a maximum flow of 20 gpm at a distance of approximately 35 ft.
  • Rapidly replenish the water tanks with a suction hose that can draw water from available on-site sources
  • For the MM-2LX:
    • Available with 55 gallon water tanks built into each pontoon for water transport
    • Optional 110 gallon bed-mounted tank available
  • Easily combined with hydraulic rotary cutter or roller chopper attachments to create fire breaks and wet lines.

Watch Video

Outfit and Equip with Accessories to Add Value

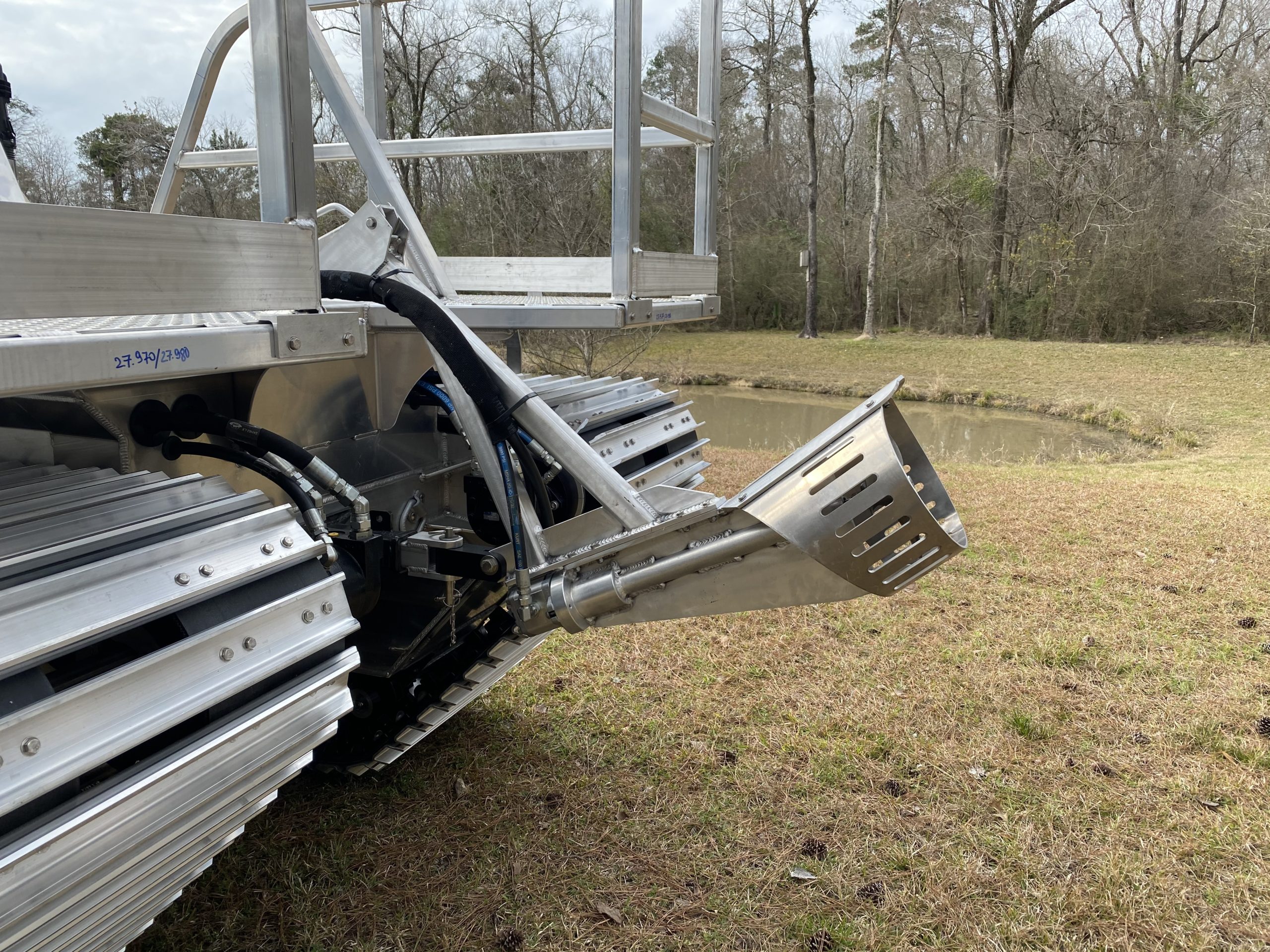

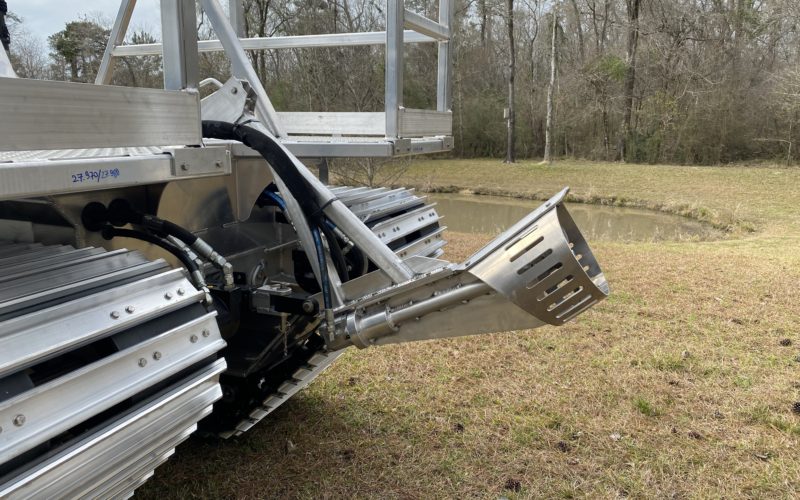

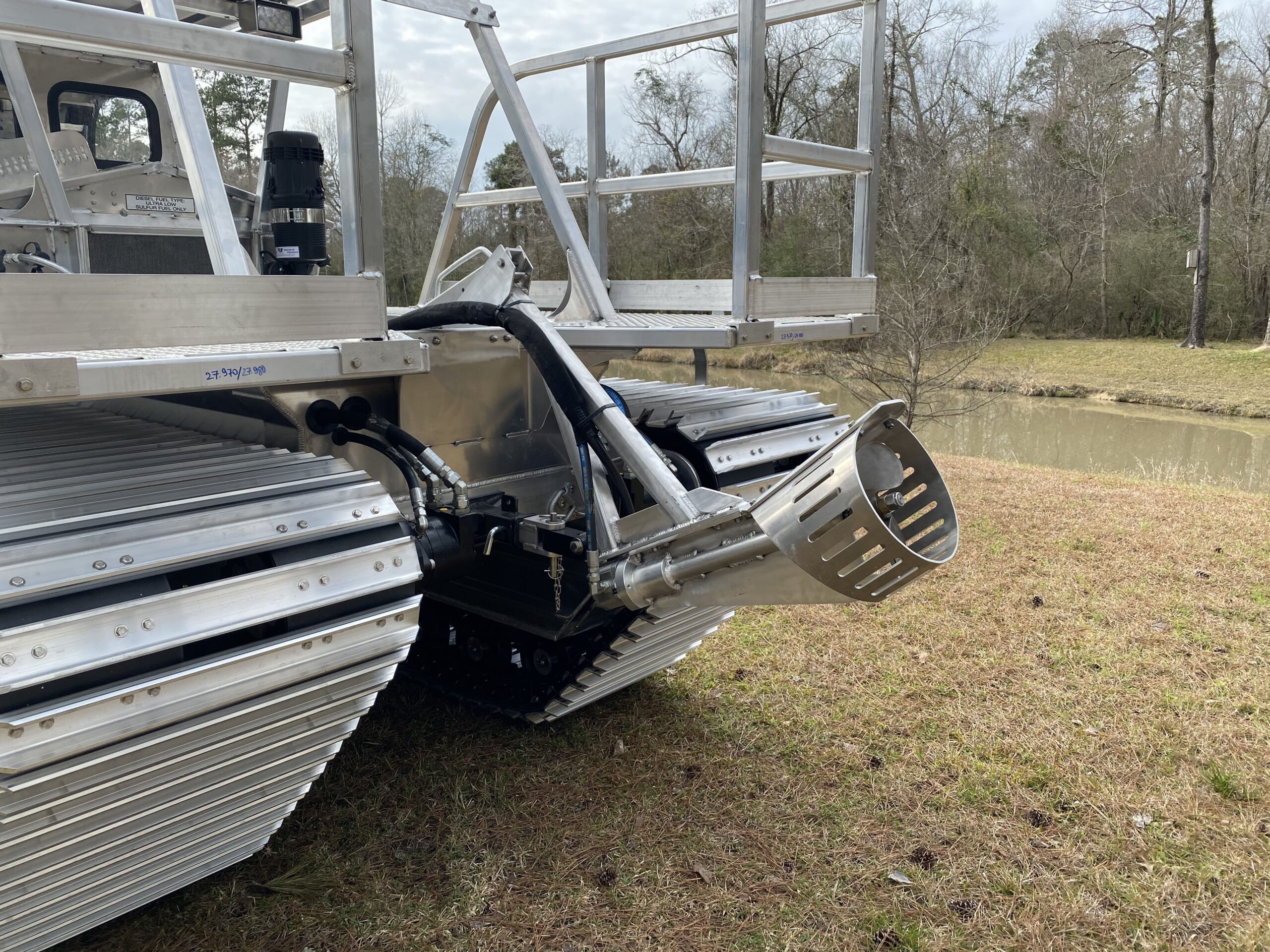

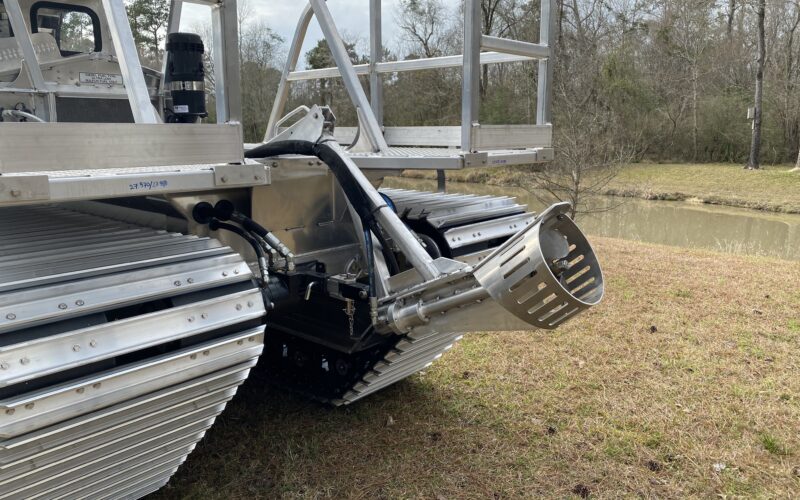

Prop Drive™

(Patent # US 10,293,648 B2)

The MM-2LX can be equipped with our proprietary hydraulic powered prop drive and attaches to the Marsh Master® vehicle’s hydraulic tool circuit with quick-connects.

  • Attaches with a single pin for fast and easy installation/removal
  • Can be stowed in the overhead rack when not in use
  • Ramps up to 10 hp output
  • Tilts up when tracking
  • Propels Marsh Master® amphibious vehicle up to 3 mph without aid of tracks.
  • Features:
    • Tiller handle steering with tiller handle mounted F-N-R
    • Bolt-on protective ring around prop for added safety
    • Lightweight—only 75 lbs

View the Spec Sheet

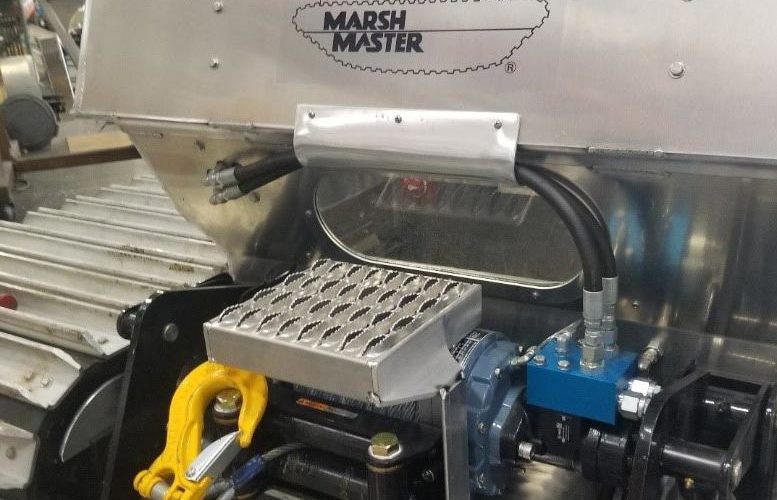

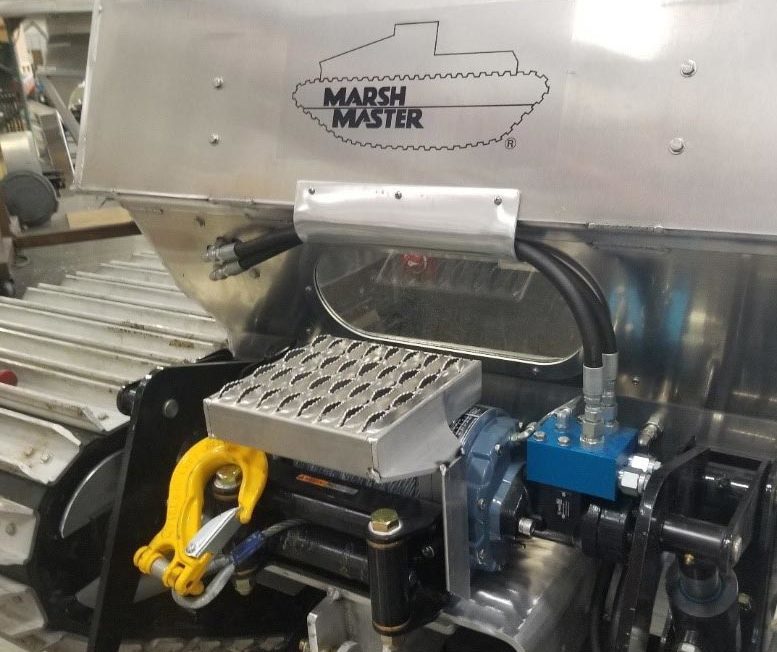

Winch Catwalk

The MM-2LX can be equipped with a non-slip aluminum catwalk for working access to all sides of the marsh buggy while afloat or stationary at a project site.

Particularly useful for projects where frequent deck-level access is required, such as:

  • Surveying
  • Anchor setting
  • Line maintenance

Request More Info

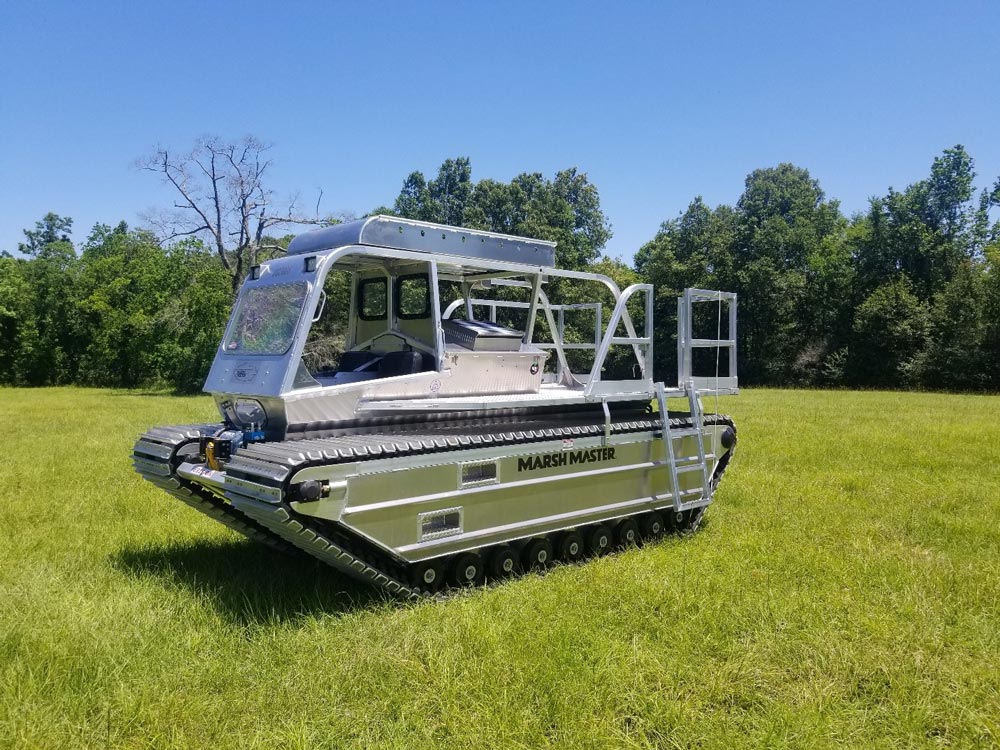

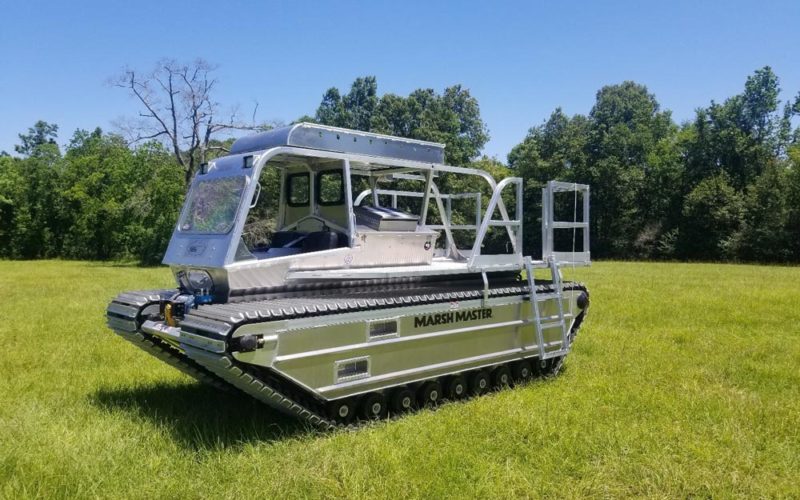

Deck Railing

Heavy duty bolt-on aluminum deck rails can be installed with an integrated fold down ladder.

  • Provide a secure and convenient work area

Request More Info

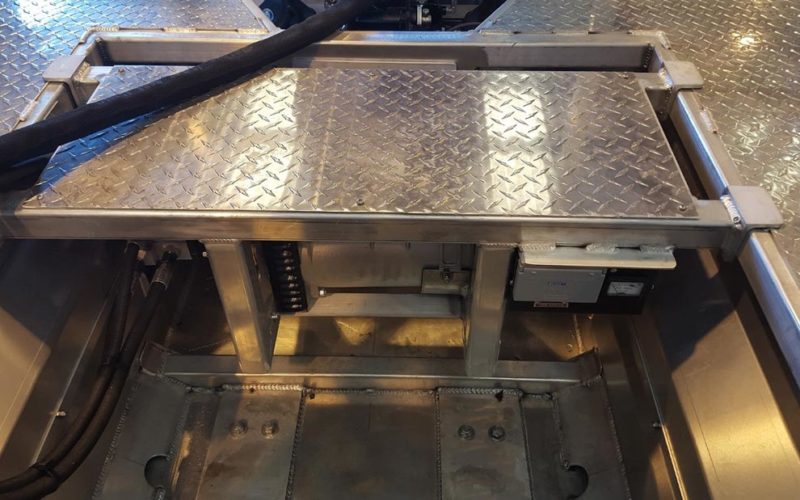

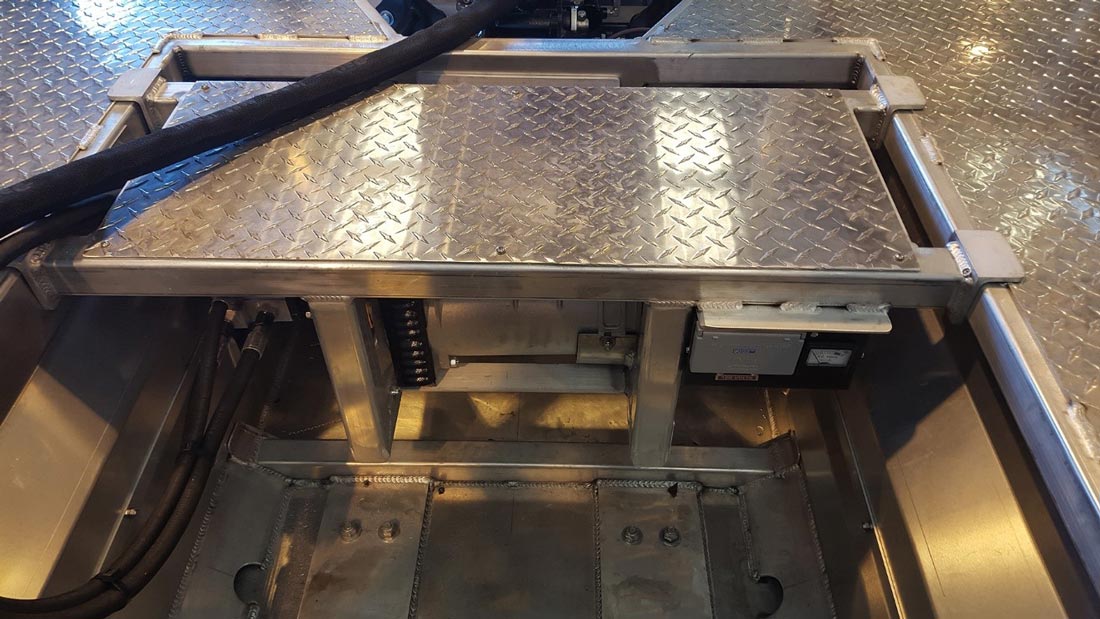

Hydraulic Generator

Marsh Master® amphibious vehicles offer a 3000 watt hydraulic-driven generator that is powered off the aux. hydraulic tool circuit via quick-connects.

  • Portable compact design
  • Doubles as a bench seat
  • Provides a reliable power source for a variety of tooling

Request More Info

Front Brush Guard

The MM-2LX can be equipped with a bolt-on steel mesh guard to protect the windshield during operations that require tracking through heavy brush and small trees.

Request More Info

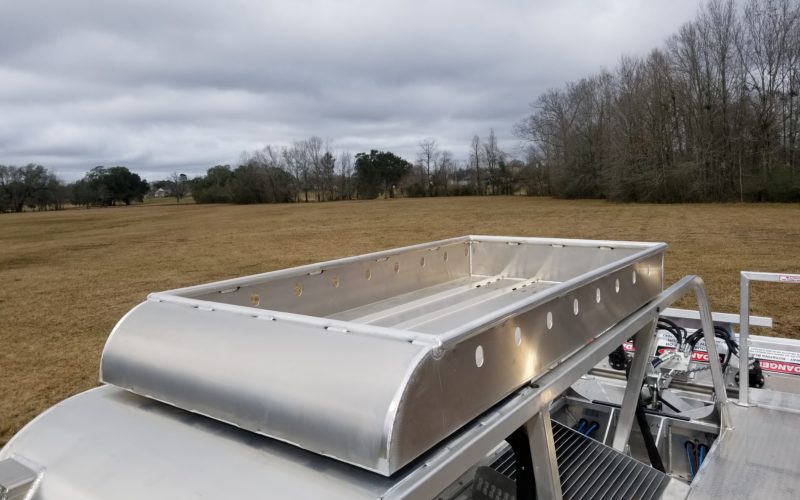

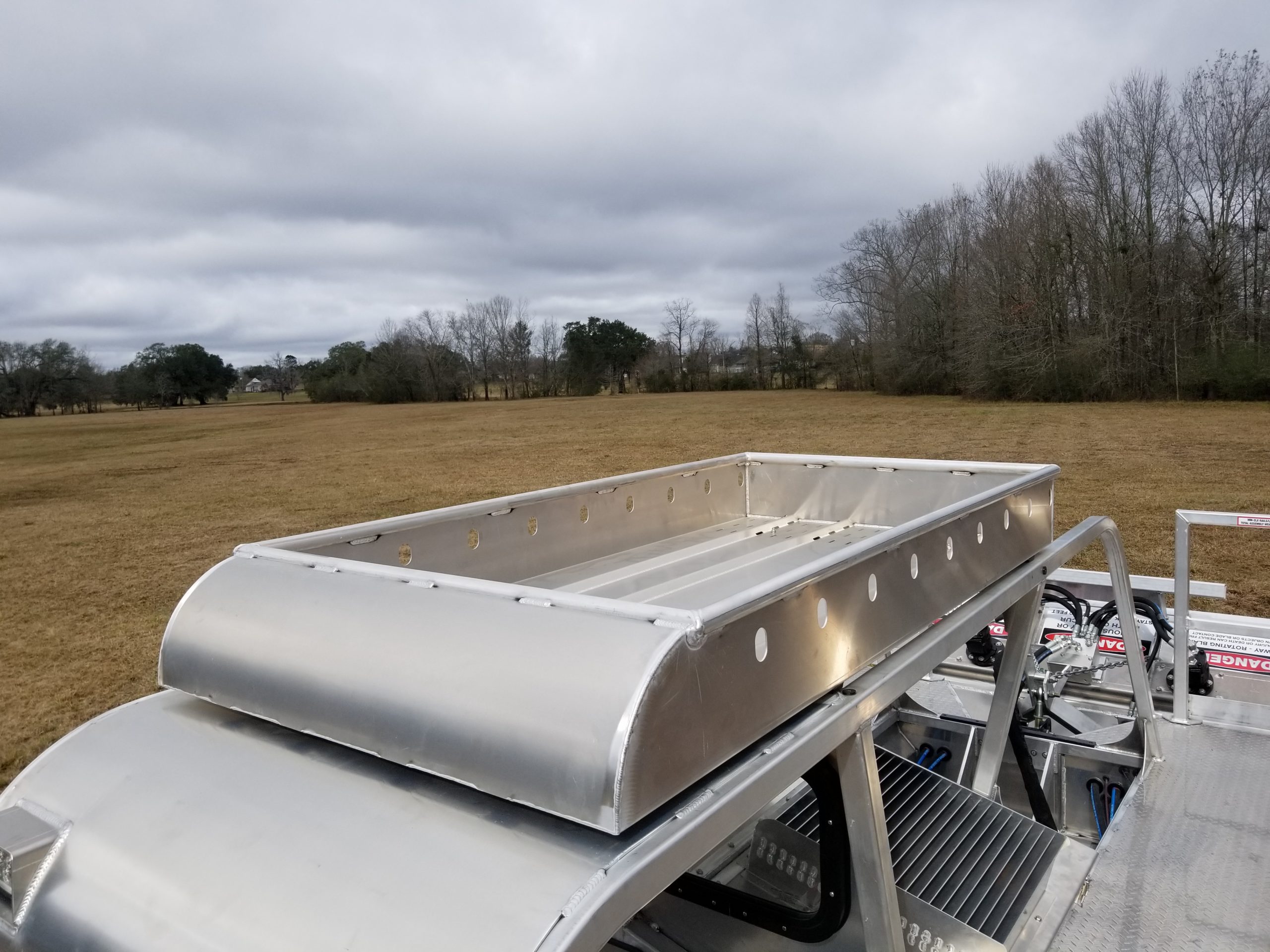

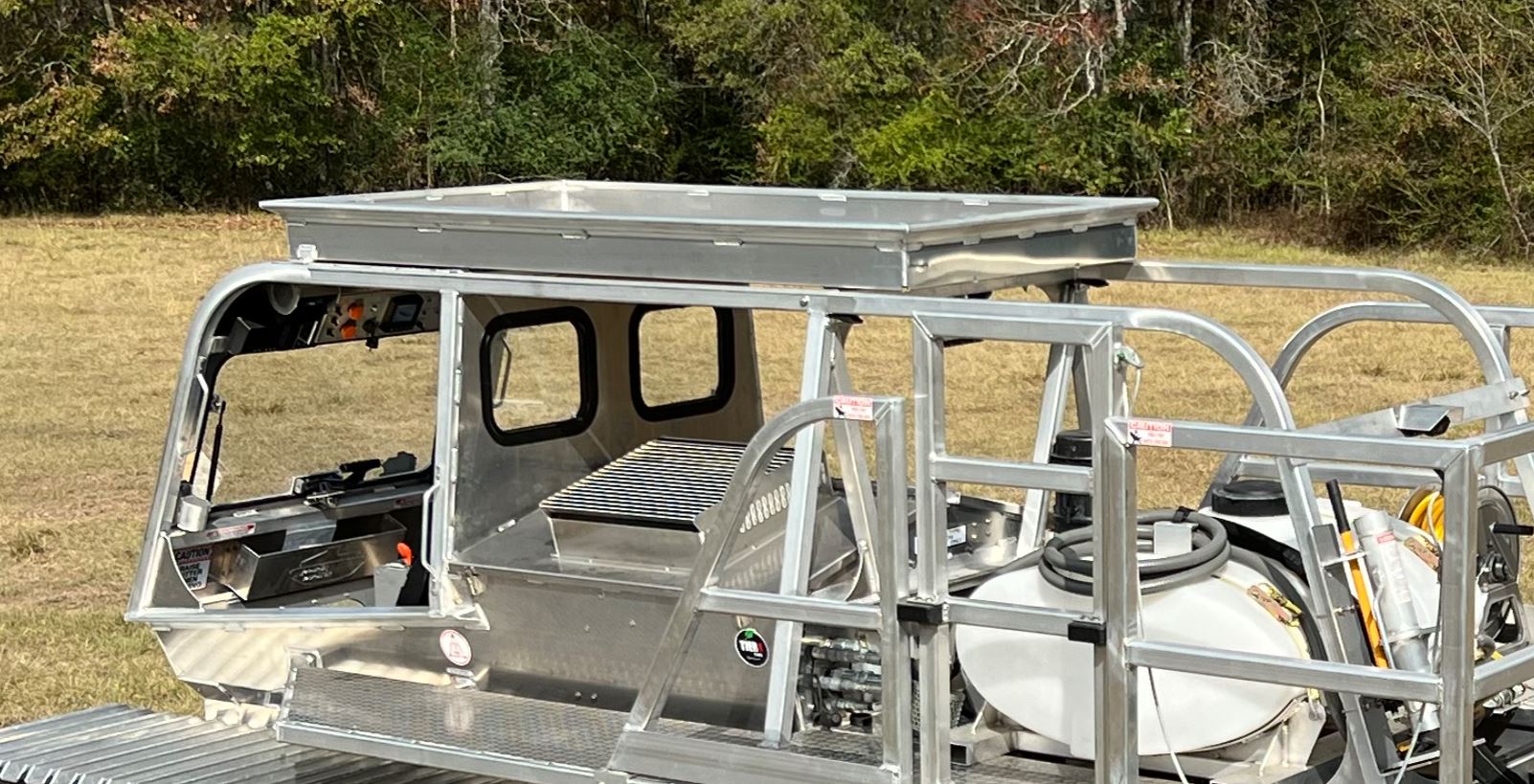

Cargo Rack

There are two cargo rack options for your Marsh Master® amphibious vehicles: flush mounted rack and standard rack.

Ideal for transporting extra equipment or gear

  • Overhead rack options add more versatility to the MM-2LX
  • Baskets are equipped with tie downs, and perforated for drainage.
  • Can transport up to 100 lbs. of equipment or gear.

Request More Info

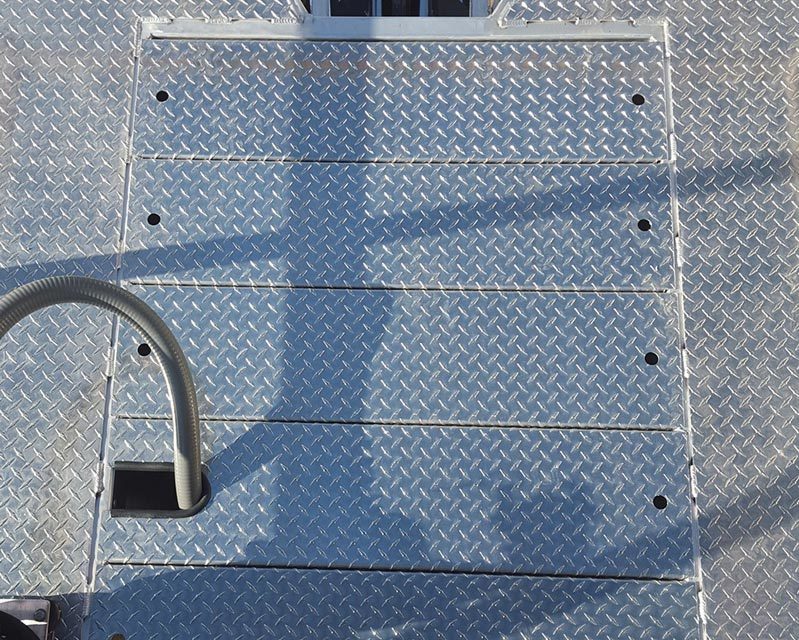

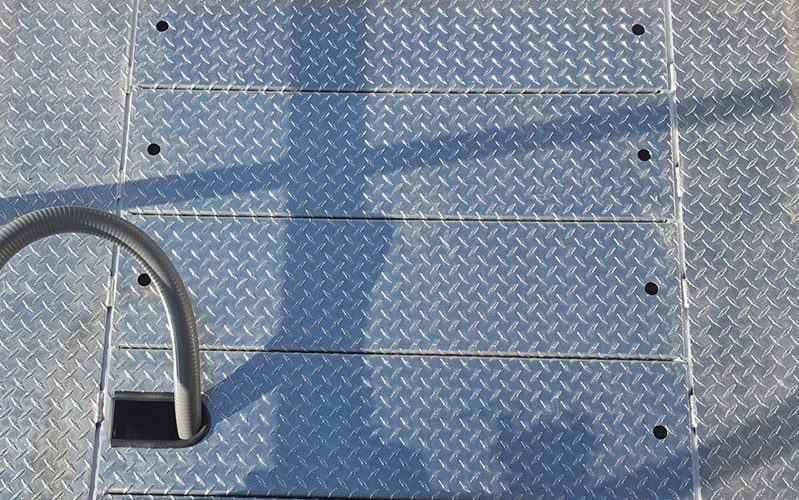

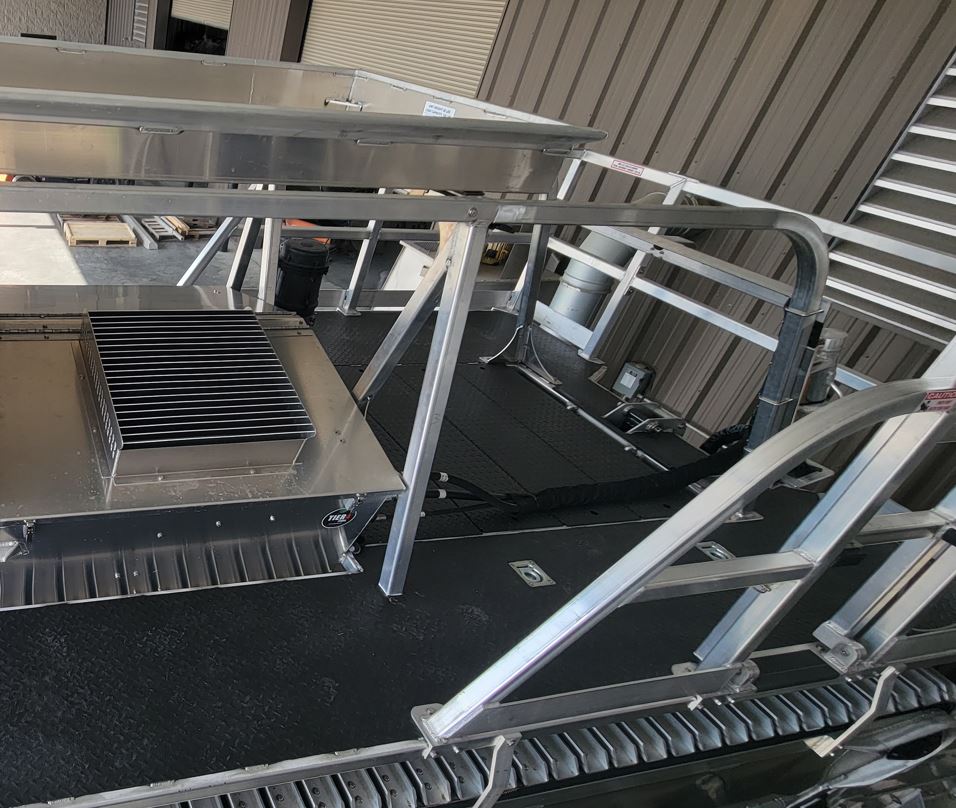

Deck Inserts

Turn the bed opening of the Marsh Master® amphibious vehicles into a flat walking surface with this optional feature.

  • Lightweight, removable aluminum panels
  • Provides a cushioned vinyl bench with one deck insert panel

Request More Info

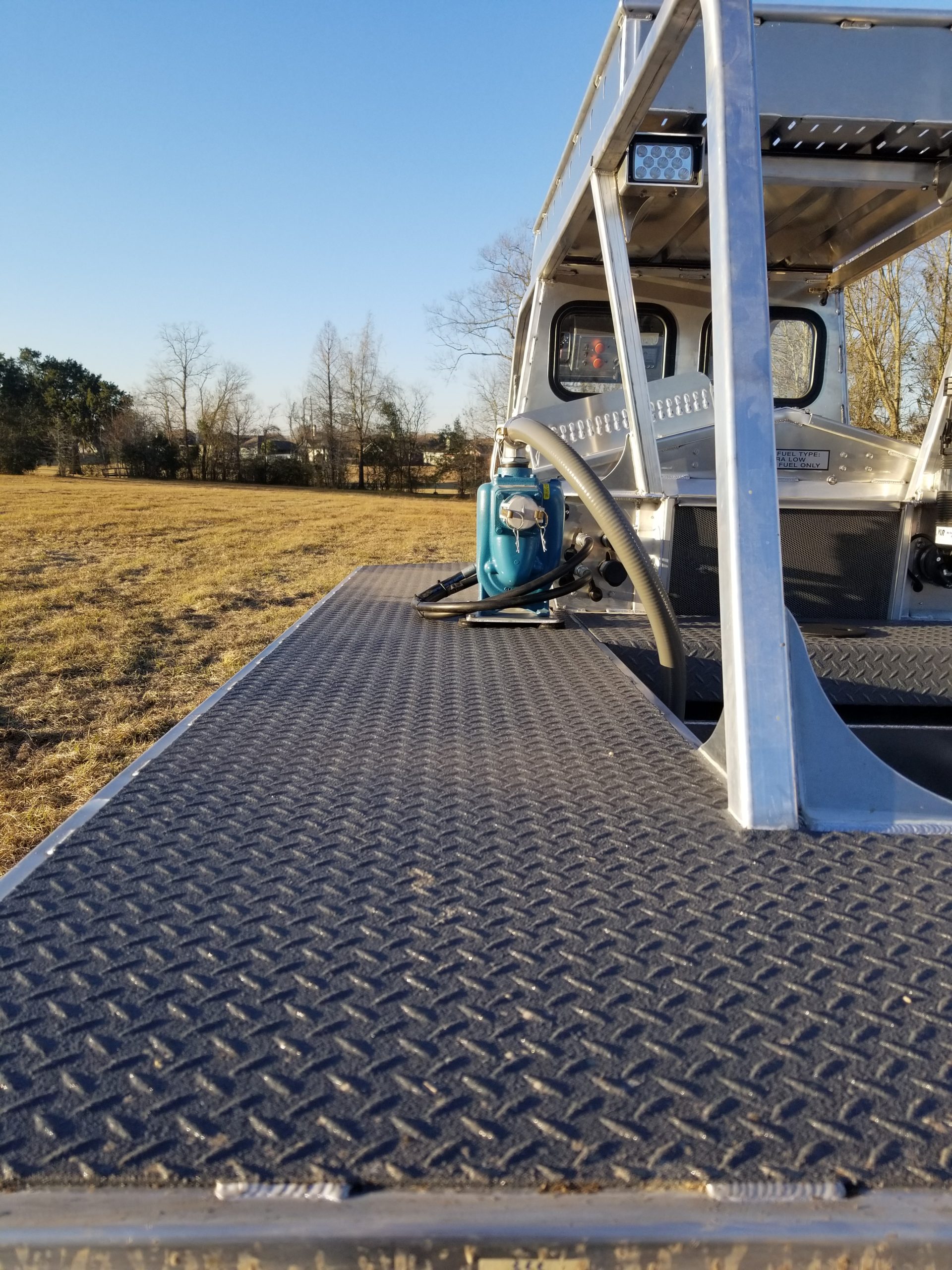

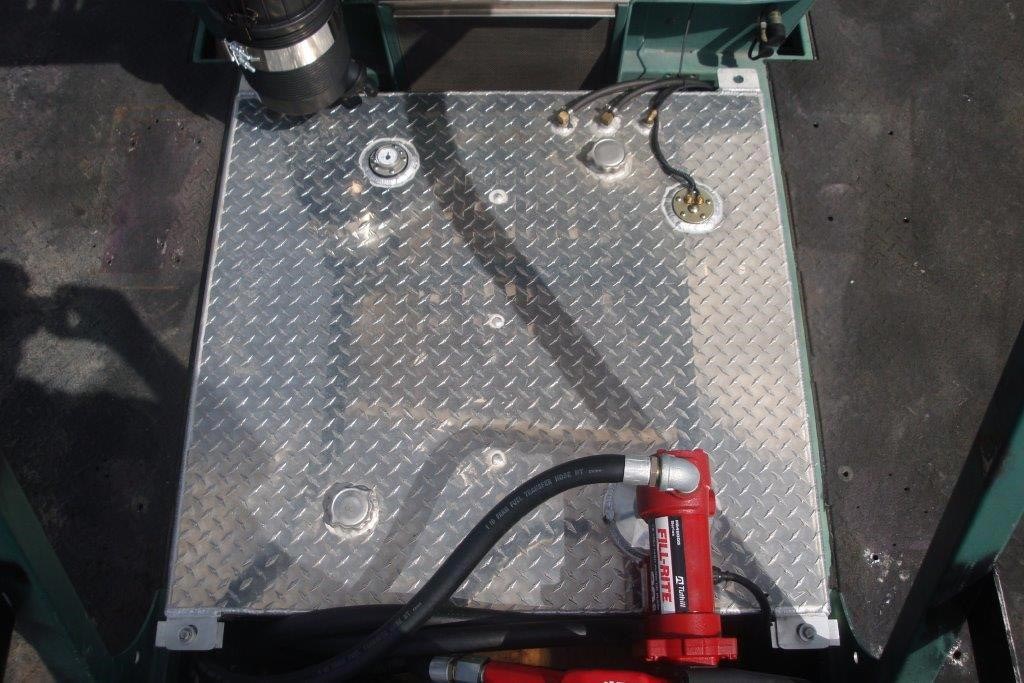

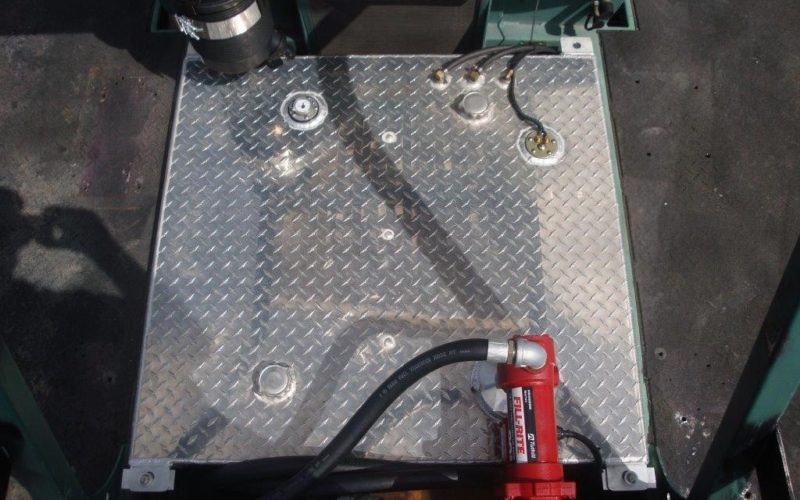

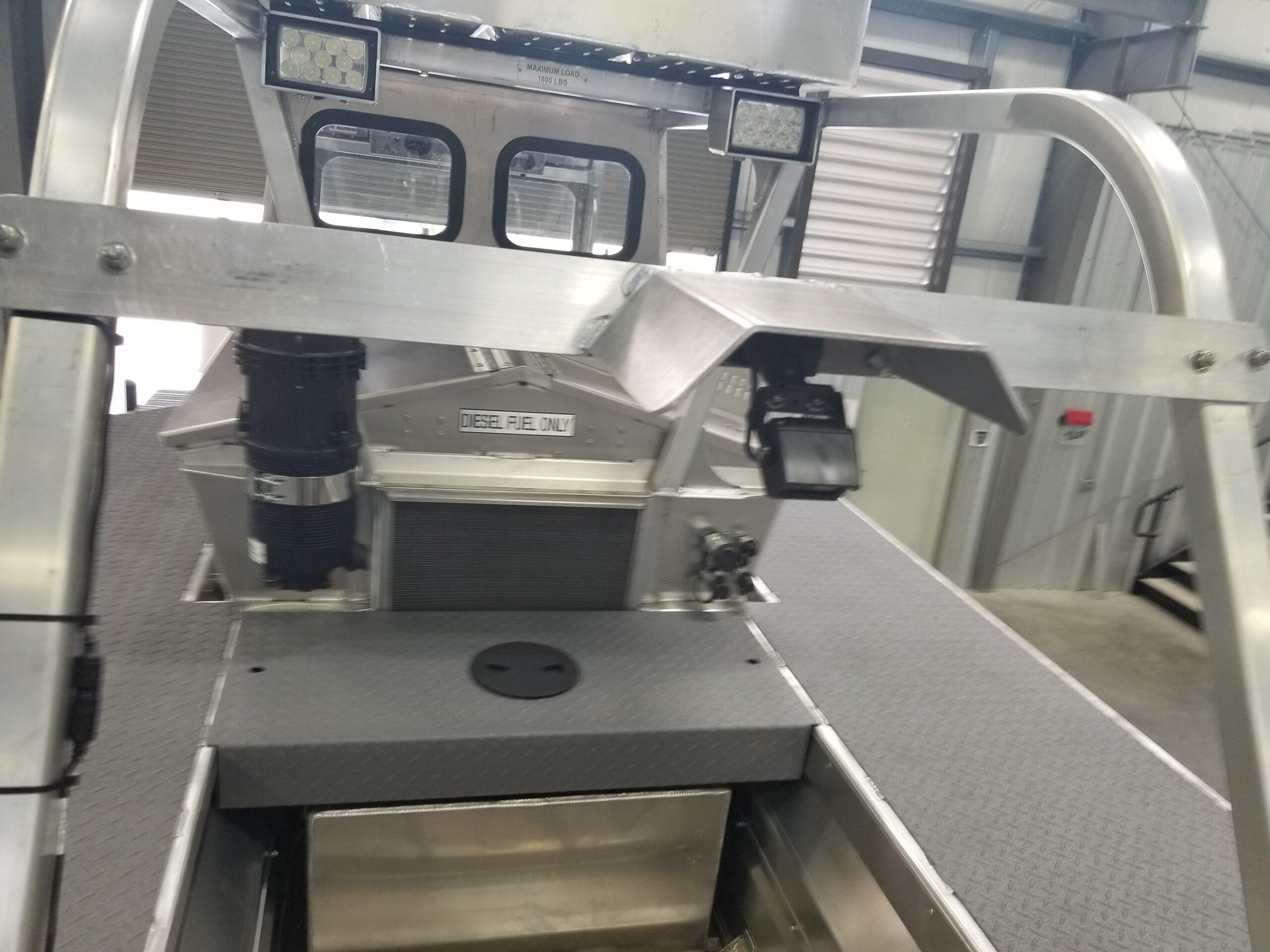

Auxiliary Fuel Transfer Tank

Marsh Master® amphibious vehicles can include a 100 gal. auxiliary fuel transfer tank for equipment refueling operations.

  • Recessed and flush-mounted in the rear bed area
  • The diamond-plate top provides a flat walking surface.
  • The fuel tank features an electric transfer pump that can deliver about 30 gallons per minute
  • Provides a fast and efficient method for transporting and transferring fuel to machines in the field.

Request More Info

LED Light Bars

Additional LED light bars provide a bright, energy-efficient light source for your project.

Request More Info

Line-X® Coating

Marsh Master® amphibious vehicles can include a LINE-X® coating for added durability and enhanced non-slip decks.

  • LINE-X® is the industry leader in truck bed protection
  • Specially formulated polymers that permanently bond to your Marsh Master® vehicle’s operating surfaces
  • Protects the Marsh Master® amphibious vehicle from just about anything you or Mother Nature can dish out.
  • LINE-X® is one of the nation’s leading providers of spray-on protective coatings
  • Utilized in commercial, industrial, agricultural, military and custom applications.

Request More Info

Vinyl Cab Enclosure

The MM-2LX can be equipped with a vinyl cab enclosure to help keep the cabin warm and dry during inclement weather.

Request More Info

Rearview Camera

Rearview camera system with in-cab display to safely view your rear mounted attachment at work.

Request More Info

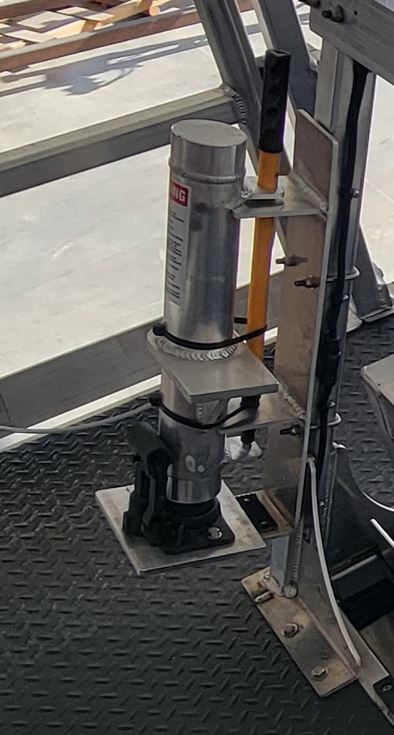

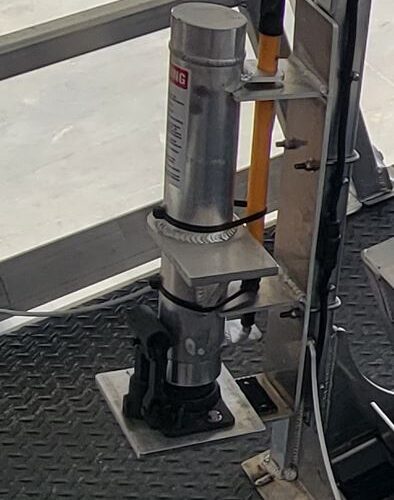

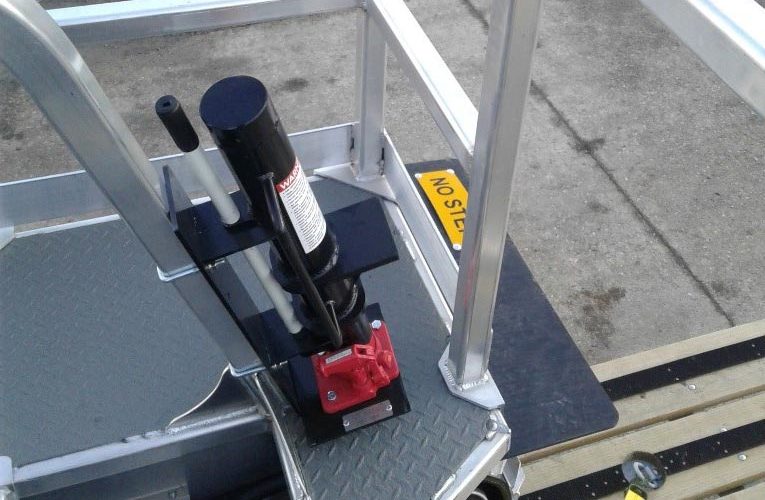

Buggy Jack

Multi-level, custom built jack designed specifically for the Marsh Master® vehicle track system.

Request More Info

Need Maintenance to Your Marsh Master® Machine?

Marsh Master® amphibious vehicles are designed, engineered, fabricated and manufactured by Coast Machinery—and no one else. If your Marsh Master® vehicle needs service or maintenance to any parts, attachments or accessories, our full-line service facility can take care of the problems so you can take your machine back to the marsh.

Ask About Service

Further MM-2LX Resources, Information and Materials

Request More InfoBrochure (PDF)

Compare Marsh Master® Products

Choose the best tool for your application.

MM-1LXMM-2LX
Length13 ‘ 8 “15 ‘ 10 “
Width7 ‘ 4 “8 ‘ 0 “
Height7 ‘ 5 “8 ‘ 0 “
Ground Clearance27 “32 “
Track Width24 “28 “
Weight3900 lbs6110-6960 lbs (depending on model and options)
Floating Load Capacity1500 lbs (max)1800 lbs max (depending on model and options)
Speed on Land6 mph8 mph
Speed in Water1 mph1 mph
Engine57 hp Kubota WG1605-GLN-E3 Gasoline74 HP Kohler KDI2504TCR Turbocharged Diesel
TransmissionHydrostaticHydrostatic
Final DriveDirect Drive High-Torque MotorDirect Drive High-Torque Motor
Body3/32 ” and 3/16” Aluminum1/8 ” and 3/16” Aluminum
Winch9,000 lb front mounted hydraulic10,000 lb front mounted hydraulic
Outboard Motor/Hydraulic Prop Drive ReadyYesYes
Auxiliary Tool Circuit3-8 gpm/3000 psi3-8 gpm/3000 psi
Opt. High Flow Aux. Tool Cir.N/A30 gpm/3000 psi
Ground PressureApprox. 1 psi, min. environmental impactApprox. 1 psi, min. environmental impact
TransportCan be towed with a properly equipped pickup truckCan be towed with a properly equipped pickup truck
3-Point HitchN/AYes
